AH A10V O140 DFR1/31R-VSD44K07 -S2012 (R902446149)

Axial piston variable pump A10V, swashplate design, open circuit, nominal pressure 280 bar, maximum pressure 350 bar. Series 31. High-speed version. Geometric displacement 140 cm3. Pressure controller with flow controller, hydraulic, X-T plugged with flushing function. Sealing material: FKM (fluoroelastomer). Drive splined shaft ANSI B92.1a. Mounting flange ISO 3019-1 (SAE) 4-hole.

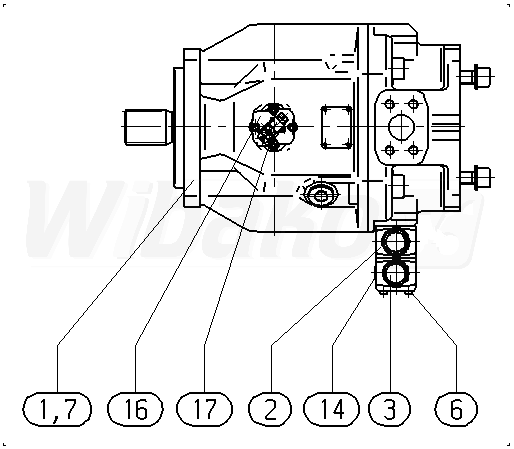

1

BASE UNIT
(149110)

Group »


2

CONTROL VALVE
(35999)

Group »


3

CONTROL VALVE
(148983)

Group »


6

SOCKET HEAD CAP SCREW
(15901)


7

SIDE MARKER RING
(149056)


14

SCREW PLUG
(13824)


16

ASSEMBLY KIT
(20567)


17

EQUIPMENT SOCKET
(20568)



Return

The above diagrams belong to Rexroth www.boschrexroth.com
