AH A10V O140 DRG /31L-PSD12K01 -SO679 (R902408537)
Axial piston variable pump A10V, swashplate design, open circuit, nominal pressure 280 bar, maximum pressure 350 bar. Series 31. High-speed version. Geometric displacement 140 cm3. Pressure controller with pressure cut-of, hydraulic, remote controlledDrive splined shaft ANSI B92.1a. Mounting flange ISO 3019-1 (SAE) 4-hole. SAE flange ports according to J518. Working ports metric. Fastening thread metric; lateral top bottom for through drive. Through drive. Flange ISO 3019-1 82-2 (A). Hub for splined shaft 5/8 in 9T 16/32DP.

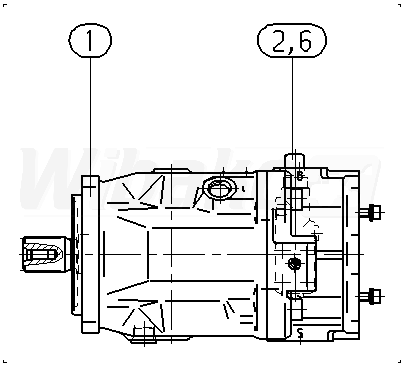

The above diagrams belong to Rexroth www.boschrexroth.com
