AHA10VO140EF2LR/31R-VQC12L70-S2297 (R902456281)

Axial piston variable pump A10V, swashplate design, open circuit, nominal pressure 280 bar, maximum pressure 350 bar. Series 31. High-speed version. Geometric displacement 140 cm3. Differential pressure control, electrically variable, negative characteristic curve, Δp shifting controller axis y, U = 24 V. Sealing material: FKM (fluoroelastomer).

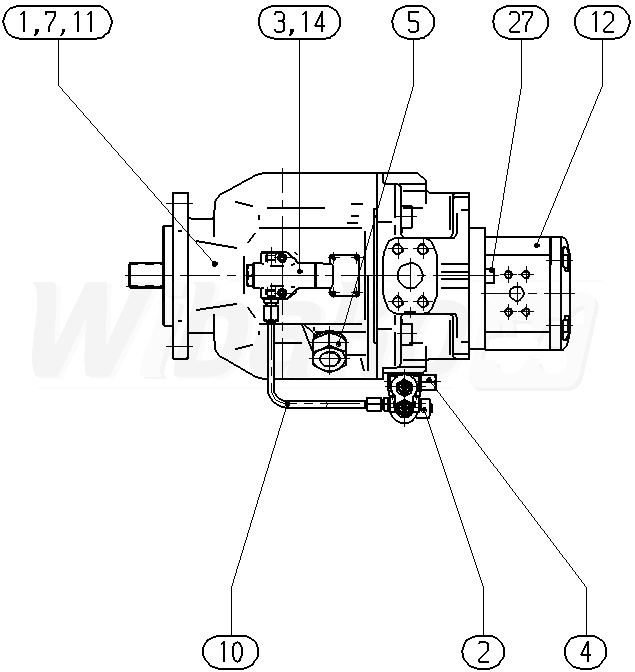

1

BASE UNIT
(149169)

Group »


2

CONTROL VALVE
(149170)

Group »


3

CONTROL VALVE
(13212)

Group »


4

ADAPTER
(13213)

Group »


5

ADAPTER
(28877)

Group »


7

SIDE MARKER RING
(121766)


10

PIPING
(122557)

Group »


11

POWER DIAGRAM
(149171)


12

HYDRAULIC GEAR PUMP


14

SCREW PLUG
(11928)


27

SOCKET HEAD CAP SCREW
(108230)



Return

The above diagrams belong to Rexroth www.boschrexroth.com
