AK A10VSO140 DR /31R-PPB12N00 -S1841 (R902538589)

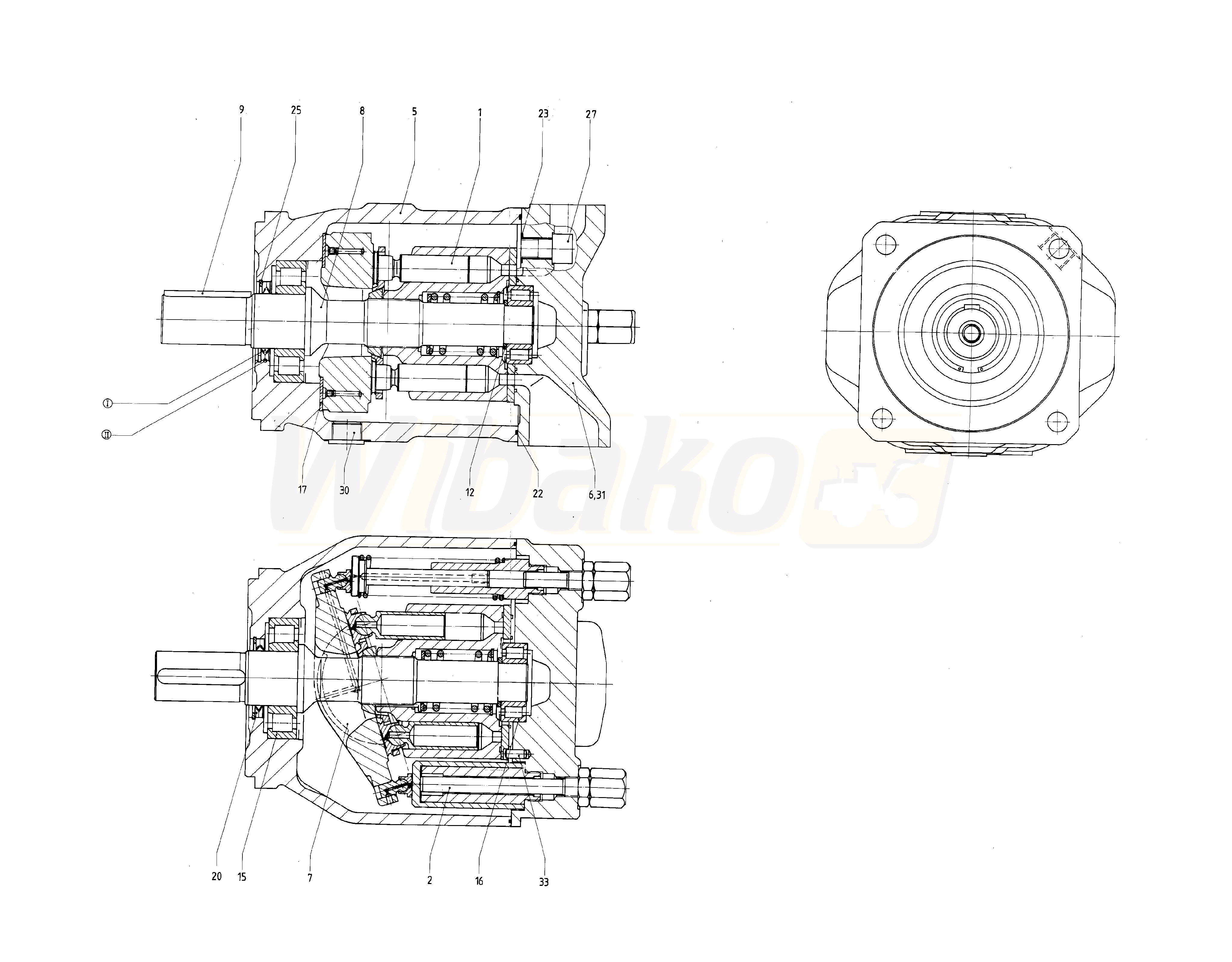

BASE UNIT (149375)

BASE UNIT
(149375)


1

ROTARY GROUP
(149113)

Group »


2

ADJUSTING PIECE
(149376)

Group »


5

PUMP HOUSING
(146950)


6

CONNECTION PLATE
(148790)


7

SWASH PLATE
(20723)


8

DRIVE SHAFT
(146497)


9

PARALLEL KEY
(15567)


12

ADJUSTMENT SHIM
(17856)


15

CYL. ROLLER BEARING
(133292)


16

CYL. ROLLER BEARING
(133293)


17

BEARING SHELL
(17860)


20

SHAFT SEALING RING
(133294)


22

O-RING
(121553)


23

R-RING
(121554)


25

RETAINING RING
(17862)


27

SOCKET HEAD CAP SCREW
(17863)


30

SCREW PLUG
(10091)


31

DOUBLE BREAK-OFF PLUG
(18990)


33

STRAIGHT PIN
(17864)



Return

The above diagrams belong to Rexroth www.boschrexroth.com
