AA4VG71DA1DM4/32R-NSF52FXX1F-S (R909600276)

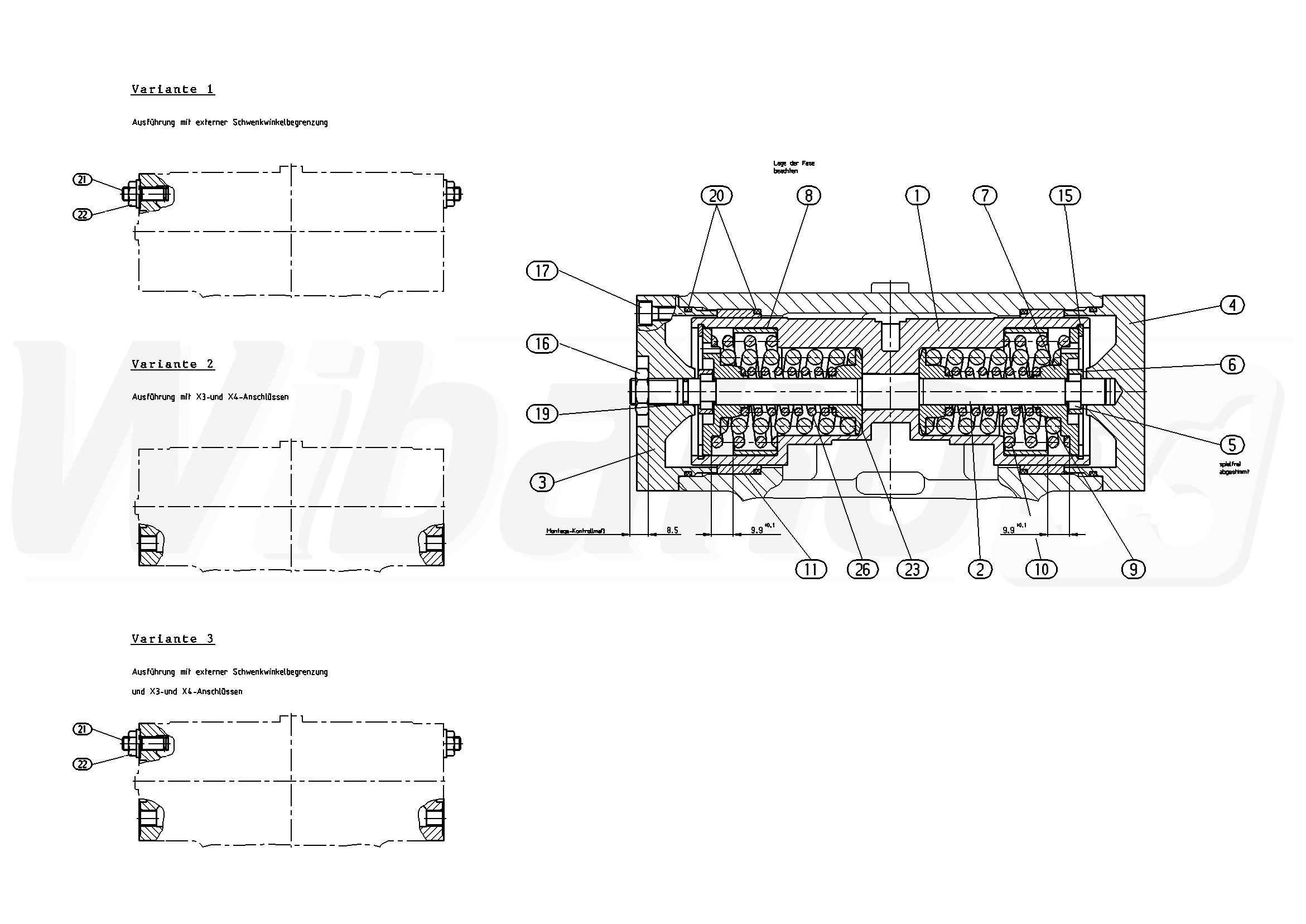

CONTROL (20468)

CONTROL
(20468)


1

POSITIONING PISTON
(20560)


2

ROD
(10650)


3

COVER
(20604)


4

COVER
(20605)


5

RING
(10651)


5

RING
(10652)


5

RING
(10653)


5

RING
(10654)


5

RING
(10655)


5

RING
(10656)


5

RING
(10657)


5

RING
(10658)


6

LOCATING RING
(20561)


7

SPRING DISK
(20606)


8

SPACER RING
(20562)


8

SPACER RING
(20563)


8

SPACER RING
(20564)


9

COMPRESSION SPRING
(20607)


10

COMPRESSION SPRING
(10662)


11

BUSHING
(10644)


15

RETAINING RING
(10663)


16

HEXAGON NUT
(10645)


17

SOCKET HEAD CAP SCREW
(10646)


19

O-RING
(10227)


20

O-RING
(10647)


21

SETSCREW
(14182)


22

SEALING NUT
(10815)


23

SPRING DISK
(20608)


26

COMPRESSION SPRING
(20609)



Return

The above diagrams belong to Rexroth www.boschrexroth.com
