ALA10VO28DRG/31L-VSC12G30 (R902449957)
Axial piston variable pump A10V, swashplate design, open circuit, nominal pressure 280 bar, maximum pressure 350 bar. Series 31. Geometric displacement 28 cm3. Pressure controller with pressure cut-of, hydraulic, remote controlledSealing material: FKM (fluoroelastomer). Drive splined shaft ANSI B92.1a. Mounting flange ISO 3019-1 (SAE) 2-hole. SAE flange ports according to J518. Working ports metric. Fastening thread metric; lateral top bottom for through drive.

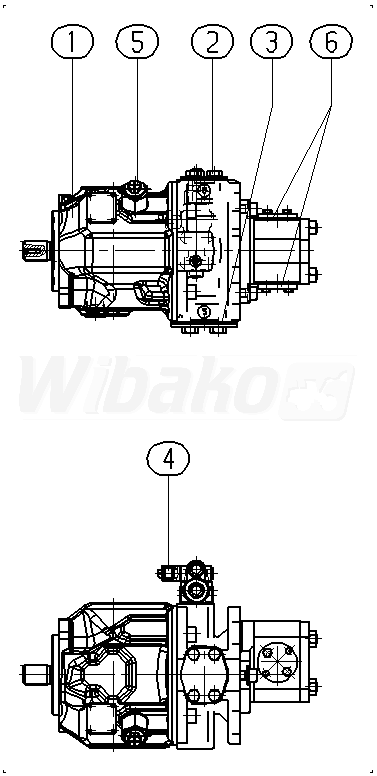

The above diagrams belong to Rexroth www.boschrexroth.com
