AL A10V O 28 DRG /52L-VCC64N00 -S1273 (R902414061)

Axial piston variable pump A10VO, swashplate design, open circuit, nominal pressure 250 bar, maximum pressure 315 bar. Series 52. Geometric displacement 28 cm3. Pressure controller with pressure cut-off, hydraulic, remote controlled. Directions of rotation: counter-clockwise (viewed on drive shaft). Seal: FKM (fluoroelastomer). Mounting flange ISO 3019-1 (SAE) 2-hole.

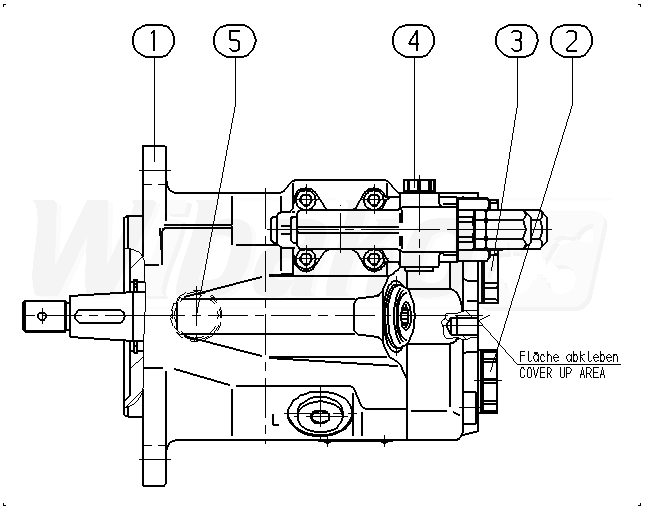

1

AXIAL-PISTON PUMP
(108966)

Group »


2

SEAL SCREW
(15162)


3

SEAL SCREW
(28827)


4

SEAL SCREW
(16347)


5

SEAL SCREW
(17306)



Return

The above diagrams belong to Rexroth www.boschrexroth.com
