AL A10V O 28 EP1D/53R-VSC12K01P (R902477459)
Axial piston variable pump A10VO, swashplate design, open circuit, nominal pressure 250 bar, maximum pressure 315 bar. Series 53. Geometric displacement 28 cm3. Electro-proportional control (positive control) with pressure control, U = 12 V. Seal: FKM (fluoroelastomer). Splined shaft ISO 3019-1, standard. Mounting flange ISO 3019-1 (SAE) 2-hole. SAE flange ports, fastening thread metric, laterally opposite, for through drive. Through drive flange ISO 3019-1 82-2 (A) , hub for splined shaft 5/8 in 9T16/32DP. DEUTSCH - molded connector, 2-pin, without suppressor diode (for electric control).

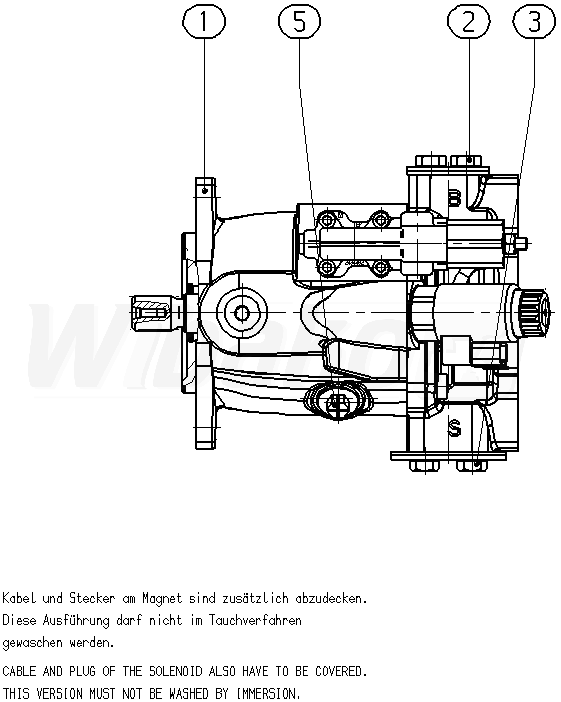

The above diagrams belong to Rexroth www.boschrexroth.com
