ALA10VO28DFLR/53R-VSC12H00-S1978 (R902426572)

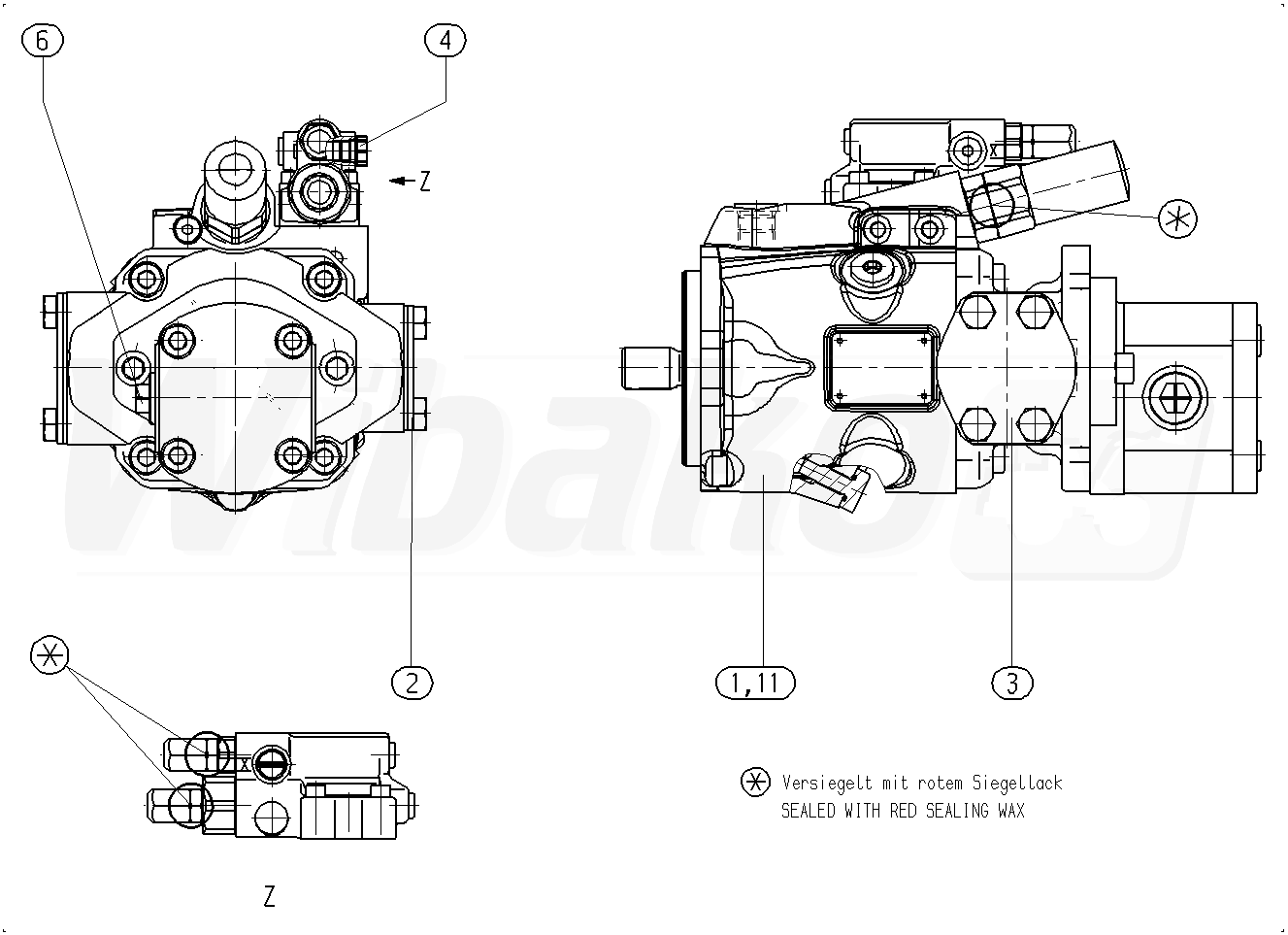

Axial piston variable pump A10VO, swashplate design, open circuit, nominal pressure 250 bar, maximum pressure 315 bar. Series 53. Geometric displacement 28 cm3. Seal: FKM (fluoroelastomer). Splined shaft ISO 3019-1, standard. Mounting flange ISO 3019-1 (SAE) 2-hole. SAE flange ports, fastening thread metric, laterally opposite, for through drive.
1

AXIAL-PISTON PUMP
(150501)

Group »


2

FLANGE COVER
(19794)


3

FLANGE COVER
(19795)


4

SEAL SCREW
(16347)


6

GUARD PLUG
(118268)



Return

The above diagrams belong to Rexroth www.boschrexroth.com
