A4VG175HT1D0RT0/40MR+A4VG175HT1D0RT0/40 (R902199645)
Set of 2 pumps:
1. Axial piston variable pump A4VG, swashplate design, nominal pressure 450 bar, maximum pressure 500 bar. Pump, closed circuit. Geometric displacement 175 cm3. Hydraulic control, direct operated. Pressure cut-off, with bypass. Fixed setting, hydraulic, mechanical. Without connector. Electric swivel angle sensor (DWS20-1, 3-pin). Stroking chamber pressure port X3 X4. Without DA control valve. Series 40. Metric ports according to ISO 6149 with O-ring seal, metric fastening thread according to DIN 13. Direction of rotation: clockwise (viewed on drive shaft).
2. Axial piston variable pump A4VG, swashplate design, nominal pressure 450 bar, maximum pressure 500 bar. Pump, closed circuit. Geometric displacement 175 cm3. Hydraulic control, direct operated. Pressure cut-off, with bypass. Fixed setting, hydraulic, mechanical. Without connector. Electric swivel angle sensor (DWS20-1, 3-pin). Stroking chamber pressure port X3 X4. Without DA control valve. Series 40.
1. Axial piston variable pump A4VG, swashplate design, nominal pressure 450 bar, maximum pressure 500 bar. Pump, closed circuit. Geometric displacement 175 cm3. Hydraulic control, direct operated. Pressure cut-off, with bypass. Fixed setting, hydraulic, mechanical. Without connector. Electric swivel angle sensor (DWS20-1, 3-pin). Stroking chamber pressure port X3 X4. Without DA control valve. Series 40. Metric ports according to ISO 6149 with O-ring seal, metric fastening thread according to DIN 13. Direction of rotation: clockwise (viewed on drive shaft).
2. Axial piston variable pump A4VG, swashplate design, nominal pressure 450 bar, maximum pressure 500 bar. Pump, closed circuit. Geometric displacement 175 cm3. Hydraulic control, direct operated. Pressure cut-off, with bypass. Fixed setting, hydraulic, mechanical. Without connector. Electric swivel angle sensor (DWS20-1, 3-pin). Stroking chamber pressure port X3 X4. Without DA control valve. Series 40.

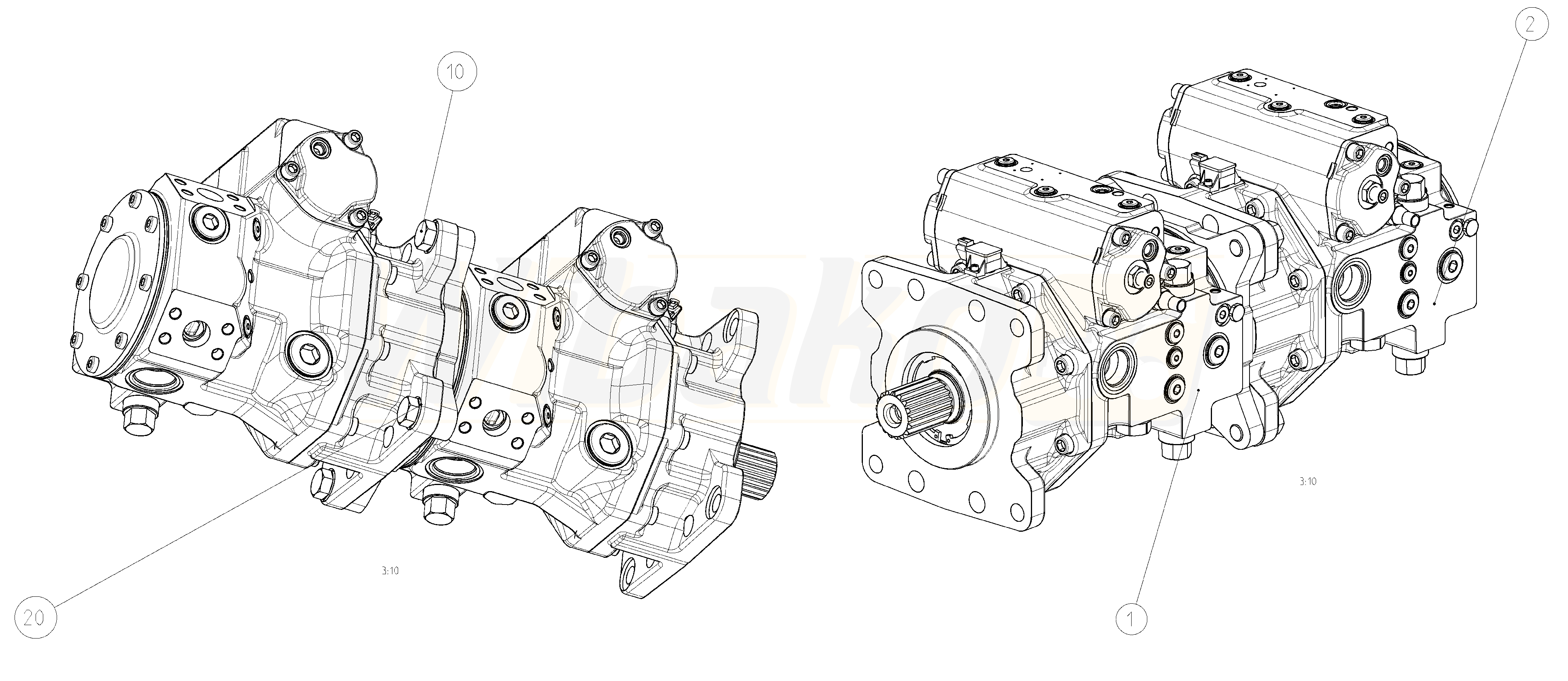

The above diagrams belong to Rexroth www.boschrexroth.com
