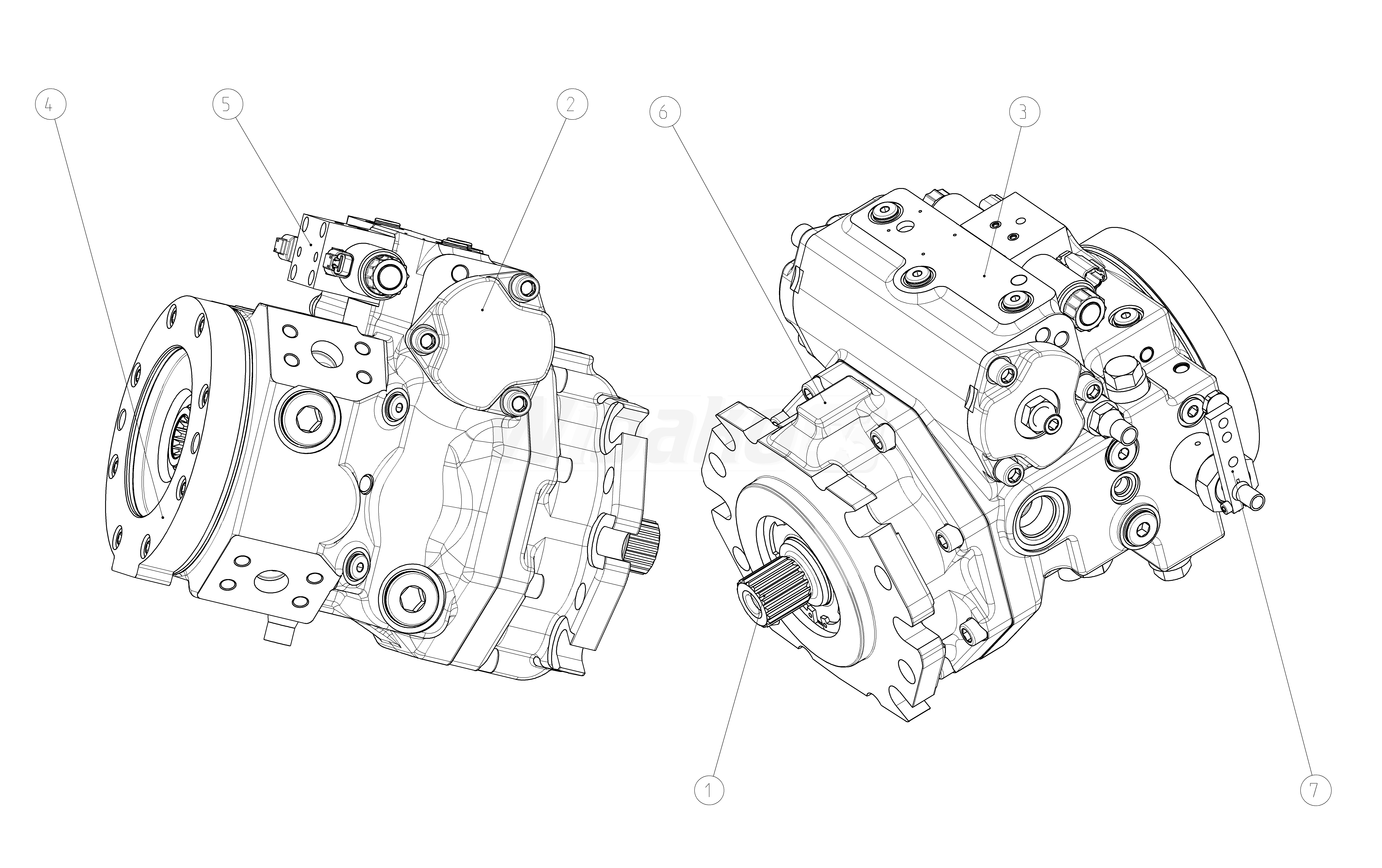

A4VG110DA1DP003/40MRND6Z91FC2S7AS00-Y (R902199666)

Axial piston variable pump A4VG, swashplate design, nominal pressure 450 bar, maximum pressure 500 bar. Pump, closed circuit. Geometric displacement 110 cm³. Automatic control, speed related U = 12 V. Pressure cut-off, with bypass. Fixed setting, hydraulic, mechanical. DEUTSCH molded connector, 2-pin – without suppressor diode. Without swivel angle sensor. Without additional function. Series 40. Metric ports according to ISO 6149 with O-ring seal, metric fastening thread according to DIN 13. Direction of rotation: clockwise (viewed on drive shaft). Sealing material: NBR (nitrile rubber), shaft seal in FKM (fluoroelastomer). Mounting flange SAE J744 152-2/4. Splined shaft DIN 5480 W40×2×18×9g. SAE working port A and B, on left side (45° left). Standard rotary group, boost pump integrated, standard internal gear pump. Flange SAE J744: diameter- 127-2 (C), mounting- horizontally, code- C2. Hub for splined shaft: diameter- 1 1/4 in 14T 12/24DP, code- S7. High-pressure relief valve, direct operated, fixed setting, with low-pressure relief valve, fixed setting. Filtration in the boost pump suction line. Standard version with installation variants.
