A4VG085EV2DP000/40MR+A11VO60LRS/10R (R902203195)
Set of 2 pumps:
1. Axial piston variable pump A4VG, swashplate design, nominal pressure 450 bar, maximum pressure 500 bar. Pump, closed circuit. Geometric displacement 085 cm3. Series 40. Metric ports according to ISO 6149 with O-ring seal, metric fastening thread according to DIN 13. Direction of rotation: clockwise (viewed on drive shaft).
2. Axial Piston Variable Pump A11VO. Swashplate design, variable, nominal pressure 350 bar, maximum pressure 400 bar. Open circuit. Size, ≈ displacement Vg maks. 60 cm3. Control unit: power control with override Direction of rotation: clockwise (viewed from shaft end).
1. Axial piston variable pump A4VG, swashplate design, nominal pressure 450 bar, maximum pressure 500 bar. Pump, closed circuit. Geometric displacement 085 cm3. Series 40. Metric ports according to ISO 6149 with O-ring seal, metric fastening thread according to DIN 13. Direction of rotation: clockwise (viewed on drive shaft).
2. Axial Piston Variable Pump A11VO. Swashplate design, variable, nominal pressure 350 bar, maximum pressure 400 bar. Open circuit. Size, ≈ displacement Vg maks. 60 cm3. Control unit: power control with override Direction of rotation: clockwise (viewed from shaft end).

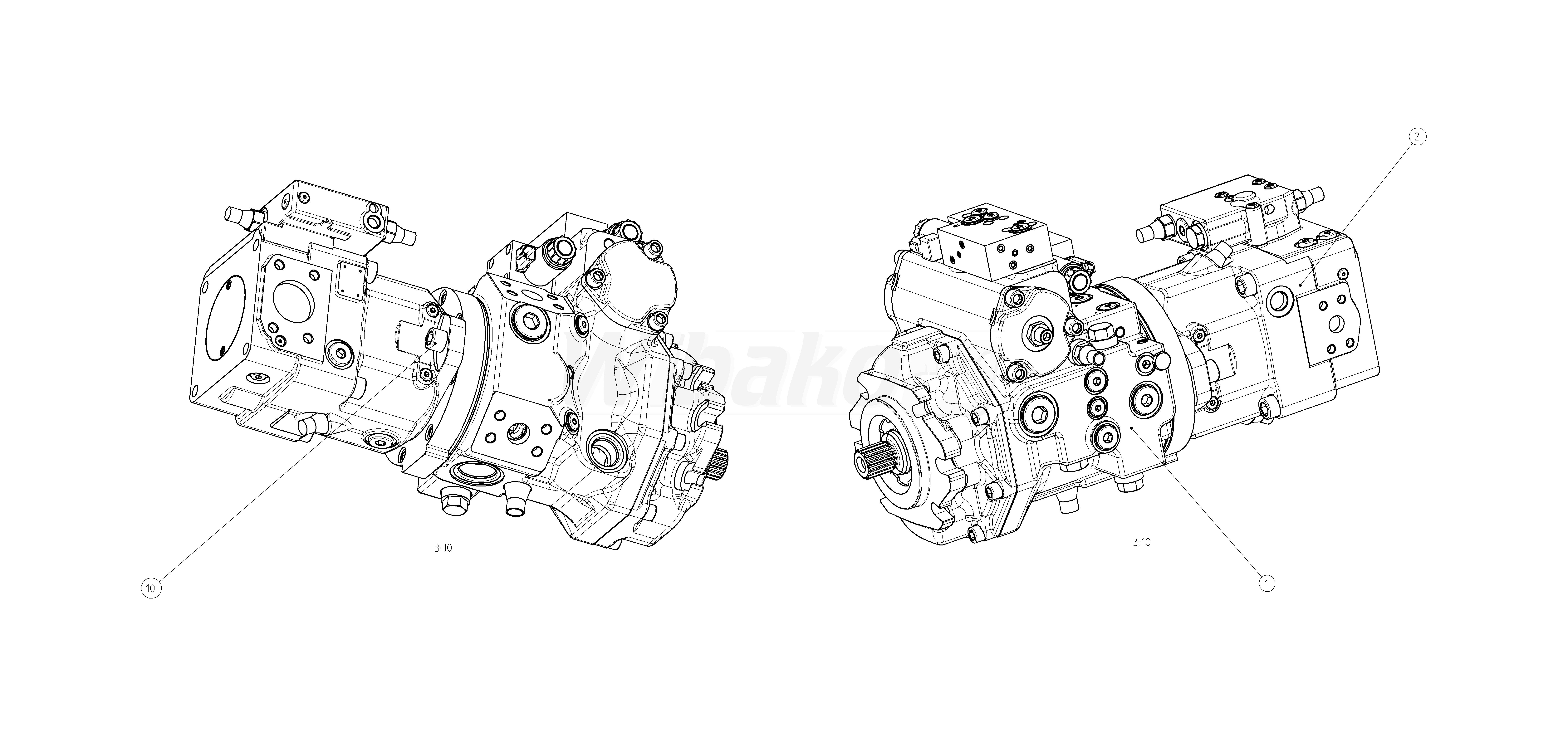

The above diagrams belong to Rexroth www.boschrexroth.com
