A4VG085EP4DH0M0/40NL+A10VO18ED72/53L (R902204539)
Set of 2 pumps:
1. Axial piston variable pump A4VG, swashplate design, nominal pressure 450 bar, maximum pressure 500 bar. Pump, closed circuit. Geometric displacement 085 cm3. Proportional control, electric with manual override and spring return U = 24 V. Pressure cut-off, with bypass. Fixed setting, hydraulic, mechanical. Series 40. Sealing material: NBR (nitrile rubber), shaft seal in FKM (fluoroelastomer).
2. Axial piston variable pump A10VO, swashplate design, open circuit, nominal pressure 250 bar, maximum pressure 315 bar. Series 53. Geometric displacement 18 cm3. Pressure controller, electric, negative control U = 24 V.
1. Axial piston variable pump A4VG, swashplate design, nominal pressure 450 bar, maximum pressure 500 bar. Pump, closed circuit. Geometric displacement 085 cm3. Proportional control, electric with manual override and spring return U = 24 V. Pressure cut-off, with bypass. Fixed setting, hydraulic, mechanical. Series 40. Sealing material: NBR (nitrile rubber), shaft seal in FKM (fluoroelastomer).
2. Axial piston variable pump A10VO, swashplate design, open circuit, nominal pressure 250 bar, maximum pressure 315 bar. Series 53. Geometric displacement 18 cm3. Pressure controller, electric, negative control U = 24 V.

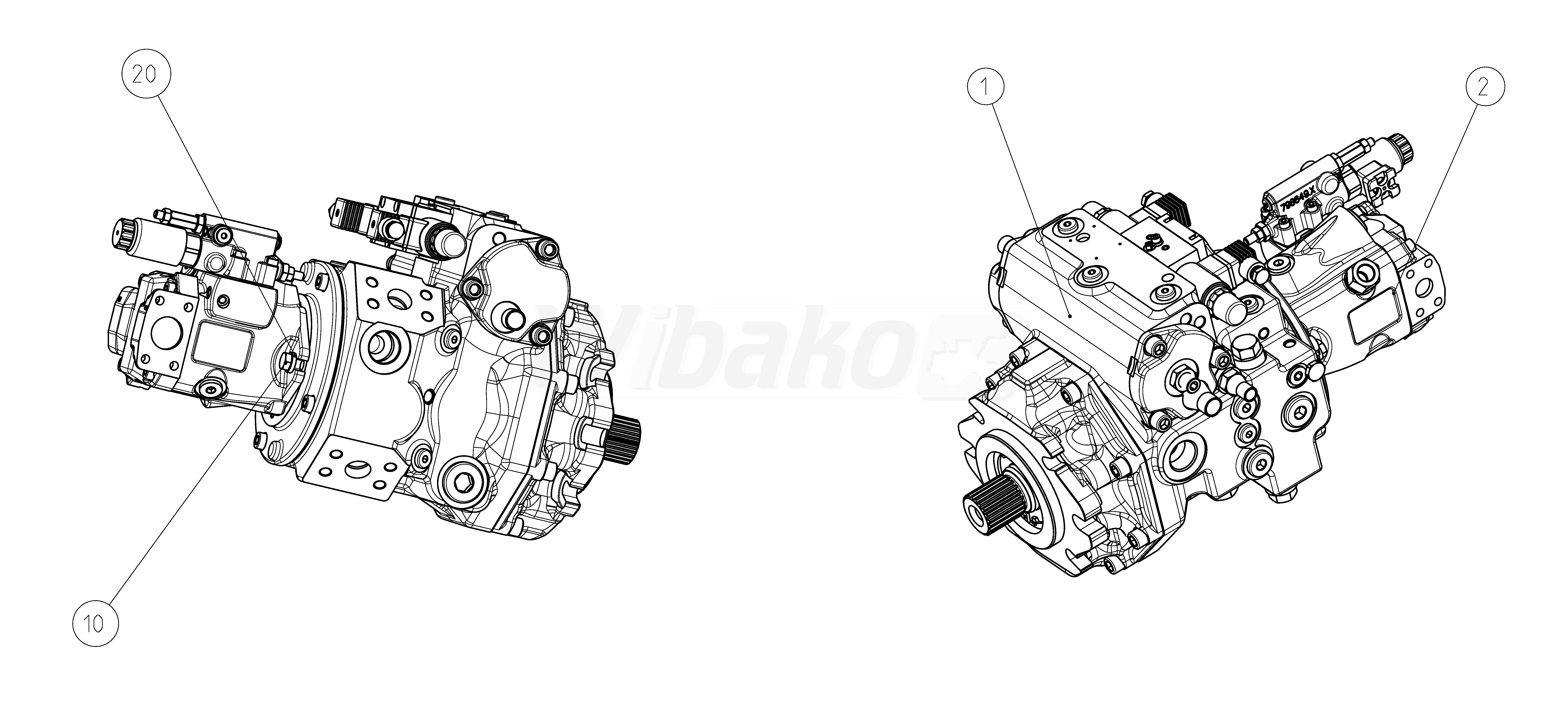

The above diagrams belong to Rexroth www.boschrexroth.com
