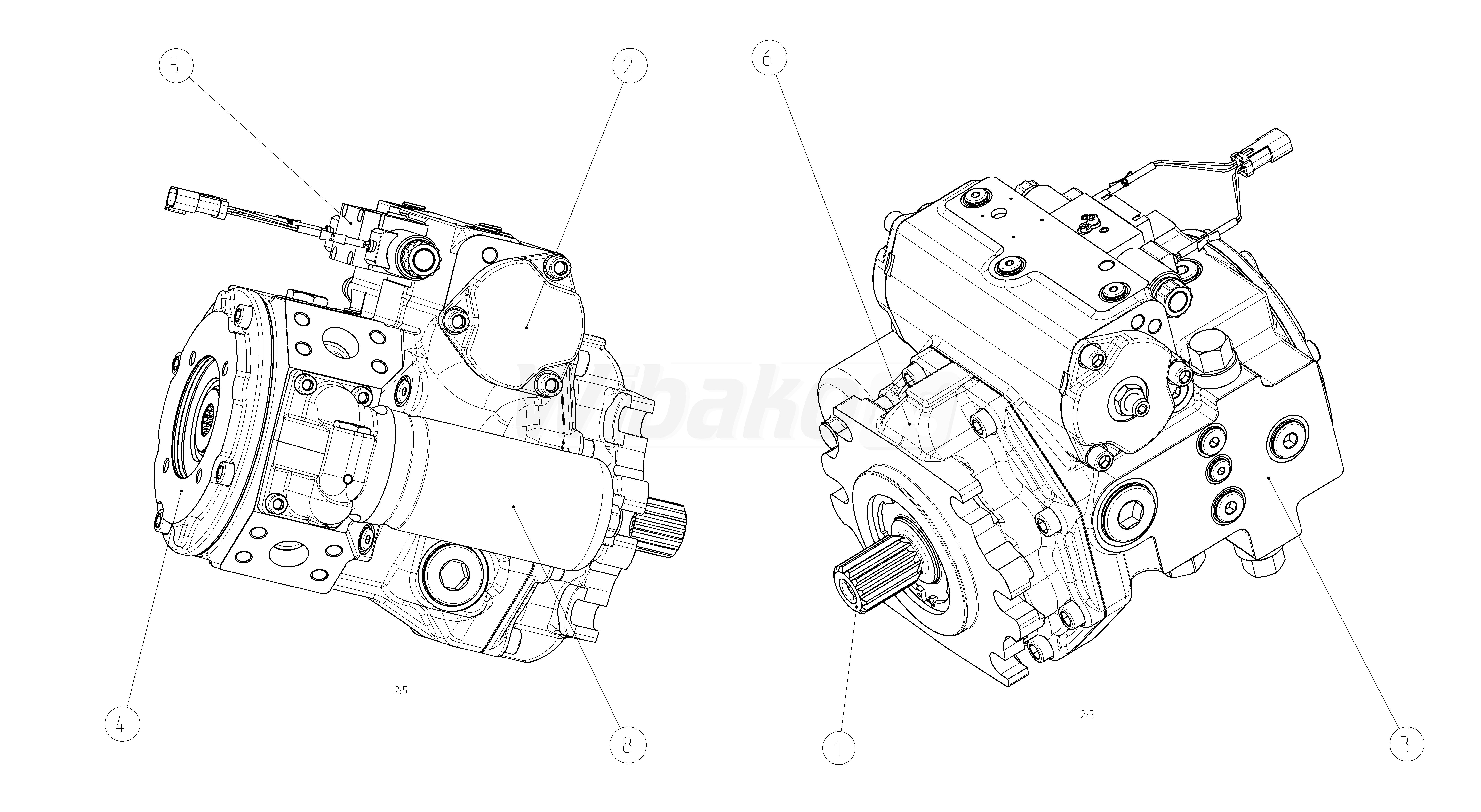

A4VG145EP10C000/40MRND6T11VB4S5AF00-Y (R902204795)

Axial piston variable pump A4VG, swashplate design, nominal pressure 450 bar, maximum pressure 500 bar. Pump, closed circuit. Geometric displacement 145 cm³. Proportional control, electric U = 12 V. Without pressure cut-off, without bypass. Series 40. Metric ports according to ISO 6149 with O-ring seal, metric fastening thread according to DIN 13. Direction of rotation: clockwise (viewed on drive shaft). Sealing material: NBR (nitrile rubber), shaft seal in FKM (fluoroelastomer). Mounting flange SAE J744 152-2/4. Splined shaft ANSI B92.1a–1976 1 3/4 in 13T 8/16DP. SAE working port A and B, on left side (45° left). High-speed rotary group, boost pump integrated, standard internal gear pump. Flange SAE J744: diameter- 101-4 (B), mounting- squarely, code- B4. Hub for splined shaft: diameter- 1 in 15T 16/32DP, code- S5. High-pressure relief valve, direct operated, fixed setting, with low-pressure relief valve, fixed setting. Filtration in the boost pump pressure line. Attachment filter with cold start valve. Standard version with installation variants.
