A4VG085HP1D0000/40ALNC6V81FB2S4AD00-0 (R902205786)
Axial piston variable pump A4VG, swashplate design, nominal pressure 450 bar, maximum pressure 500 bar. Pump, closed circuit. Geometric displacement 085 cm3. Proportional control, hydraulic, pilot-pressure related p = 6 to 18 bar. Pressure cut-off, with bypass. Fixed setting, hydraulic, mechanical. Without connector. Without swivel angle sensor. Without additional function. Without DA control valve. Series 40. High-pressure relief valve, direct operated, fixed setting, with low-pressure relief valve, fixed setting.

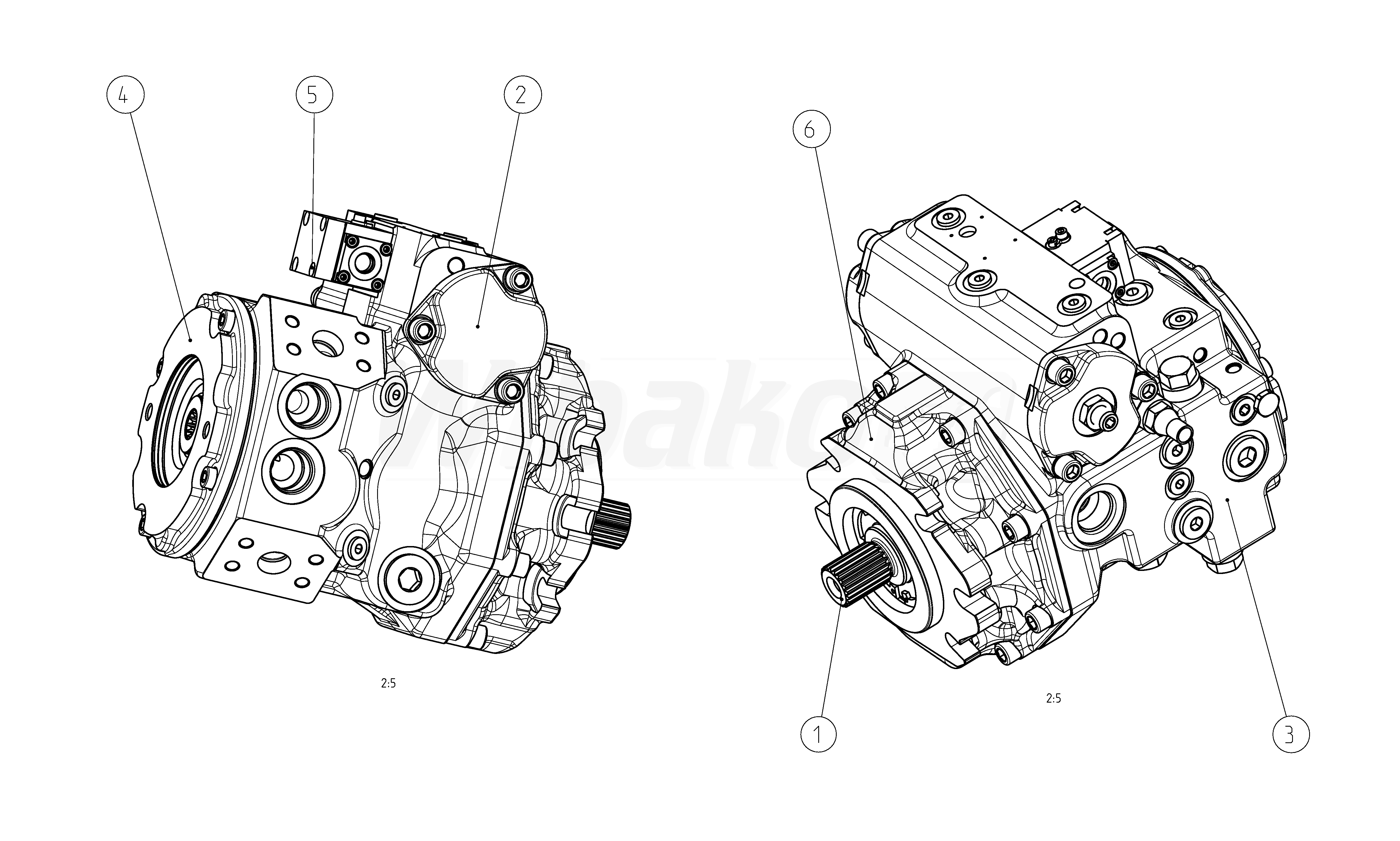

The above diagrams belong to Rexroth www.boschrexroth.com
