A4VG085EP1DPRT0/40CRNC6V82UB2S4CE00-Y (R902205976)
Axial piston variable pump A4VG, swashplate design, nominal pressure 450 bar, maximum pressure 500 bar. Pump, closed circuit. Geometric displacement 085 cm3. Proportional control, electric U = 12 V. Pressure cut-off, with bypass. Fixed setting, hydraulic, mechanical. DEUTSCH molded connector, 2-pin – without suppressor diode. Electric swivel angle sensor (DWS20-1, 3-pin). Stroking chamber pressure port X3 X4. Without DA control valve. Series 40. Standard version with installation variants.

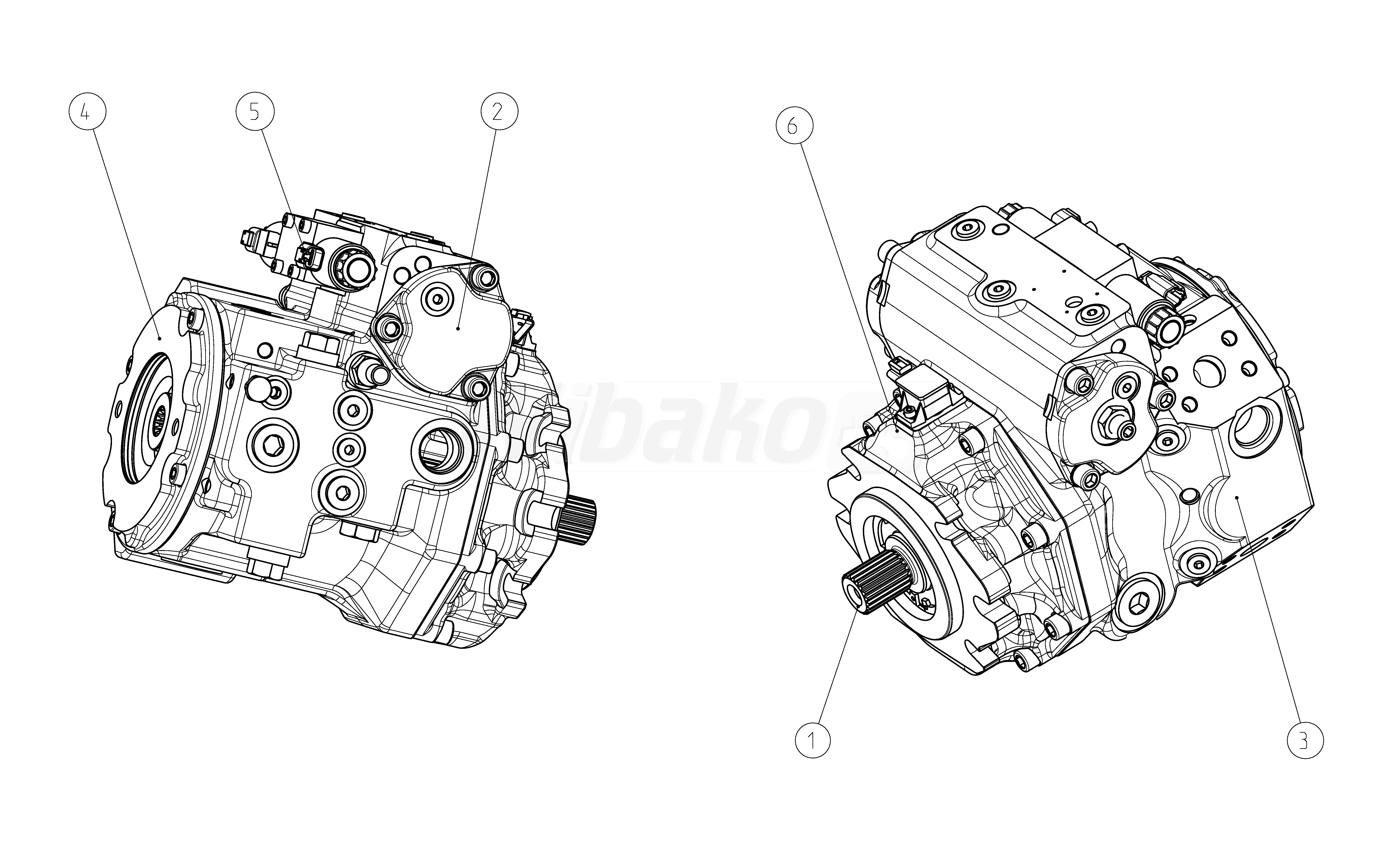

The above diagrams belong to Rexroth www.boschrexroth.com
