A4VG210SH3D0RB0/40MRNE4A32UC2S9XE00-S (R902207277)

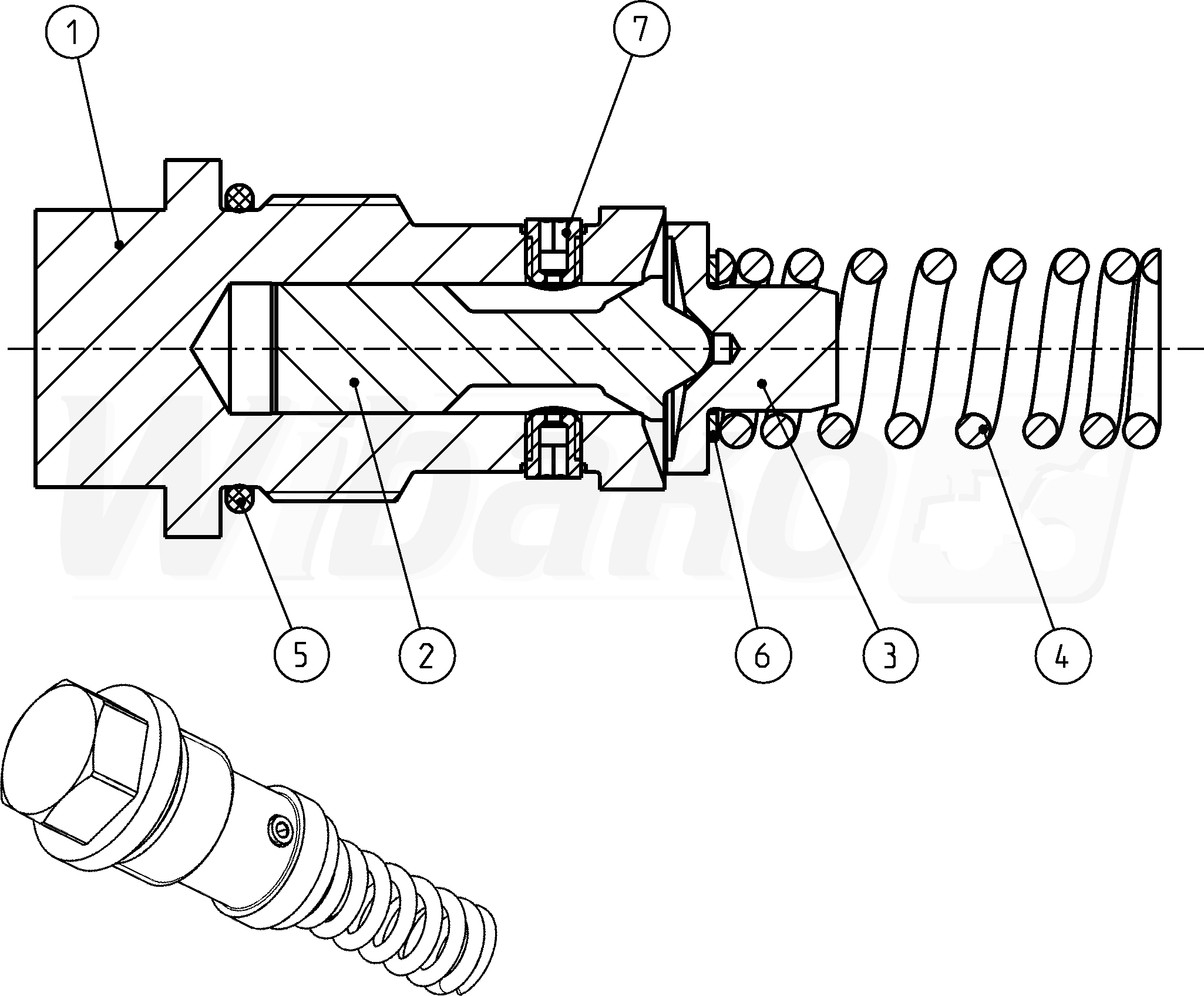

PRESSURE RELIEF VALVE (36264)

PRESSURE RELIEF VALVE
(36264)


1

SCREW PLUG
(36424)


2

VALVE SPOOL
(30635)


3

SPRING DISK
(30636)


4

COMPRESSION SPRING
(33268)


5

O-RING
(30634)


6

SHIM RING
(17166)


6

SHIM RING
(17168)


6

SHIM RING
(17167)


6

SUPPORTING DISC
(30638)


6

SUPPORTING DISC
(30639)


6

SUPPORTING DISC
(30640)


7

NOZZLE
(14404)



Return

The above diagrams belong to Rexroth www.boschrexroth.com
