A4VG085HW2/40MR+A4VG085HT1/40MR (R902207280)

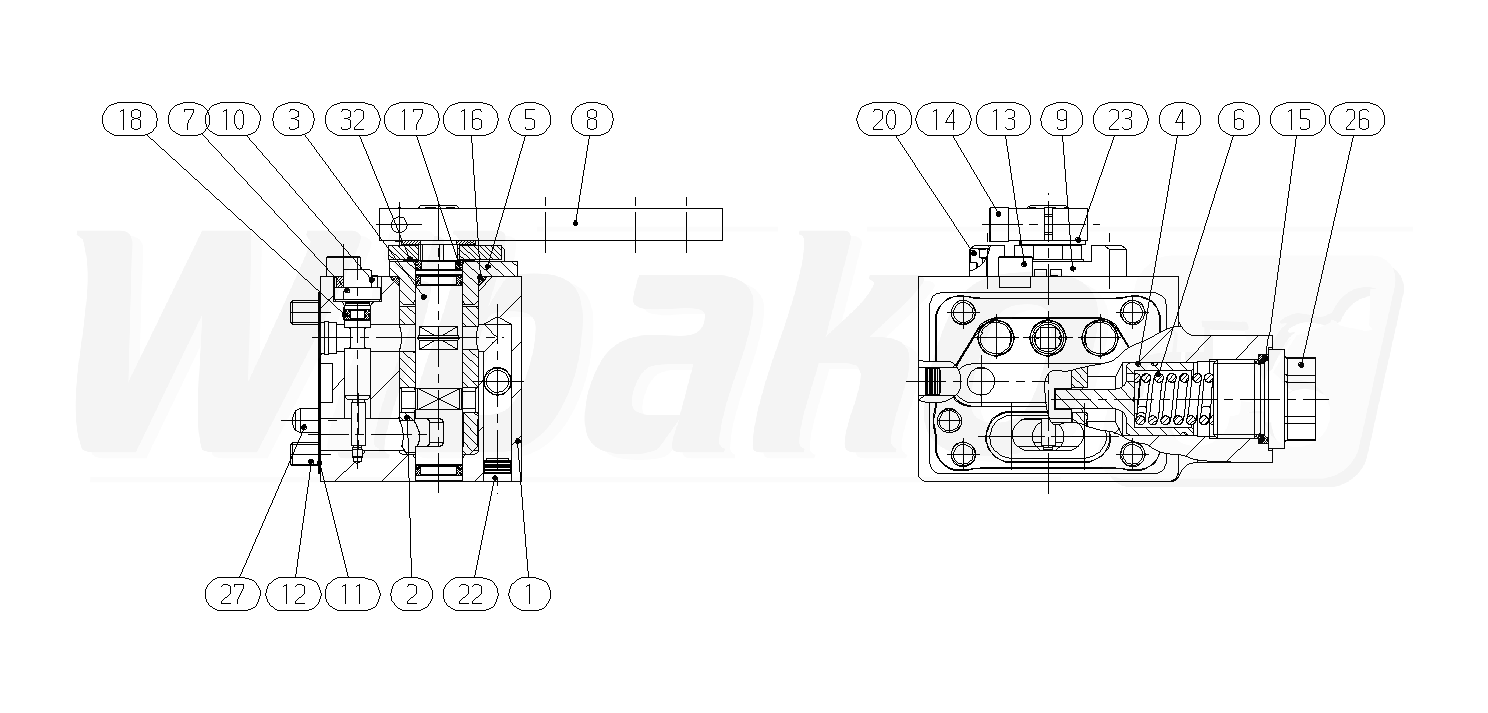

BASIC UNIT (33522)

BASIC UNIT
(33522)


1

HOUSING
(33791)


2

CONTROL SLEEVE
(33792)


3

CONTROL SHAFT
(33793)


4

SPRING BUSH
(12805)


5

COVER
(12808)


6

COMPRESSION SPRING
(12728)


7

ECCENTRIC PIN
(33794)


8

LEVER
(12807)


9

STOP PIECE
(12816)


10

WASHER
(13410)


11

SEAL
(16122)


12

SOCKET HEAD CAP SCREW
(12809)


13

SOCKET HEAD CAP SCREW
(13425)


14

SOCKET HEAD CAP SCREW
(10698)


15

O-RING
(10771)


16

O-RING
(27724)


17

O-RING
(12227)


18

O-RING
(10513)


20

SOCKET HEAD CAP SCREW
(12810)


22

SEALING PLUG
(16121)


23

LOCKING WASHER
(12811)


26

SCREW PLUG
(12812)


27

STRAIGHT PIN
(12694)


32

SHIM RING
(12814)



Return

The above diagrams belong to Rexroth www.boschrexroth.com
