A4VG085EV2DP/40MR+A10VO45DFLR/31 (R902208780)
Set of 2 pumps:
1. Axial piston variable pump A4VG, swashplate design, nominal pressure 450 bar, maximum pressure 500 bar. Pump, closed circuit. Geometric displacement 085 cm3. Series 40. Metric ports according to ISO 6149 with O-ring seal, metric fastening thread according to DIN 13. Direction of rotation: clockwise (viewed on drive shaft).
2. Axial piston variable pump A10V, swashplate design, open circuit, nominal pressure 280 bar, maximum pressure 350 bar. Series 31. Geometric displacement 45 cm3. Pressure-flow power control.
1. Axial piston variable pump A4VG, swashplate design, nominal pressure 450 bar, maximum pressure 500 bar. Pump, closed circuit. Geometric displacement 085 cm3. Series 40. Metric ports according to ISO 6149 with O-ring seal, metric fastening thread according to DIN 13. Direction of rotation: clockwise (viewed on drive shaft).
2. Axial piston variable pump A10V, swashplate design, open circuit, nominal pressure 280 bar, maximum pressure 350 bar. Series 31. Geometric displacement 45 cm3. Pressure-flow power control.

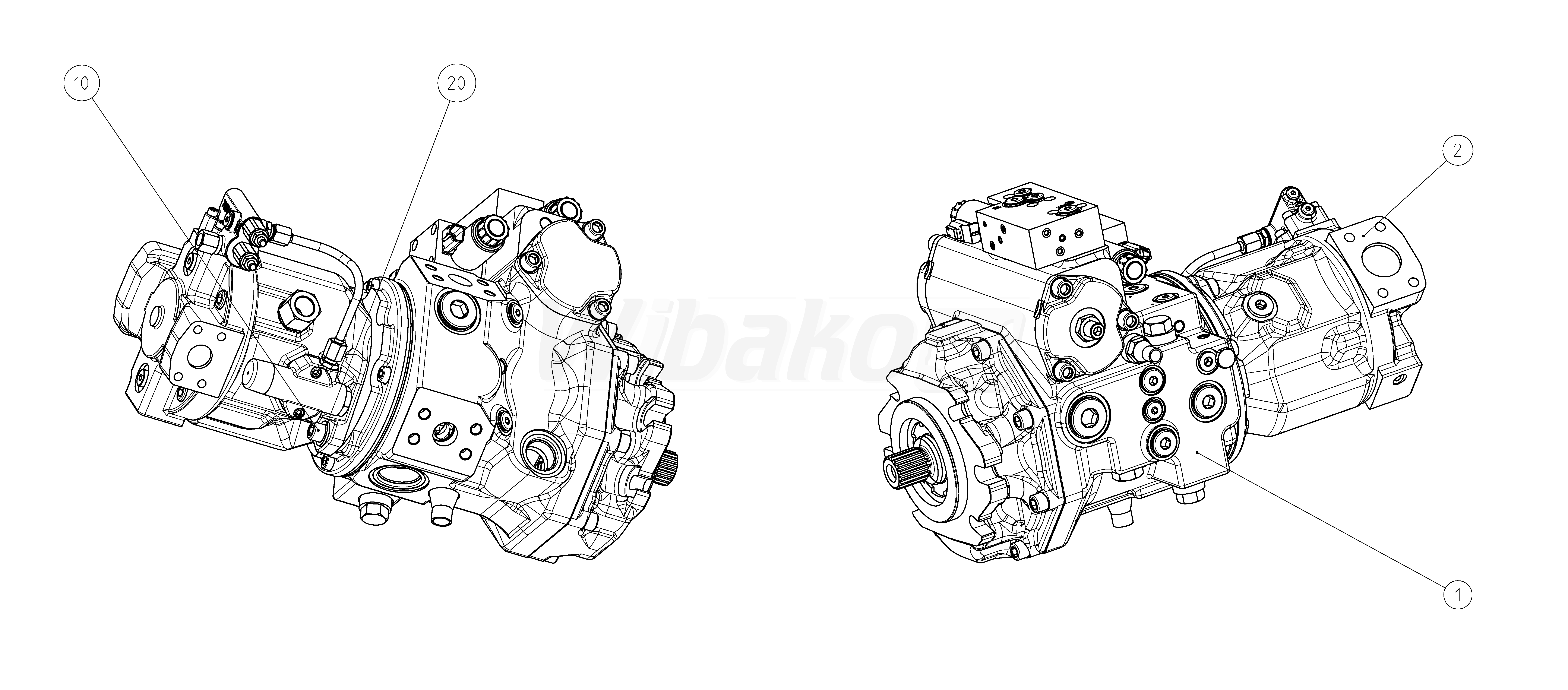

The above diagrams belong to Rexroth www.boschrexroth.com
