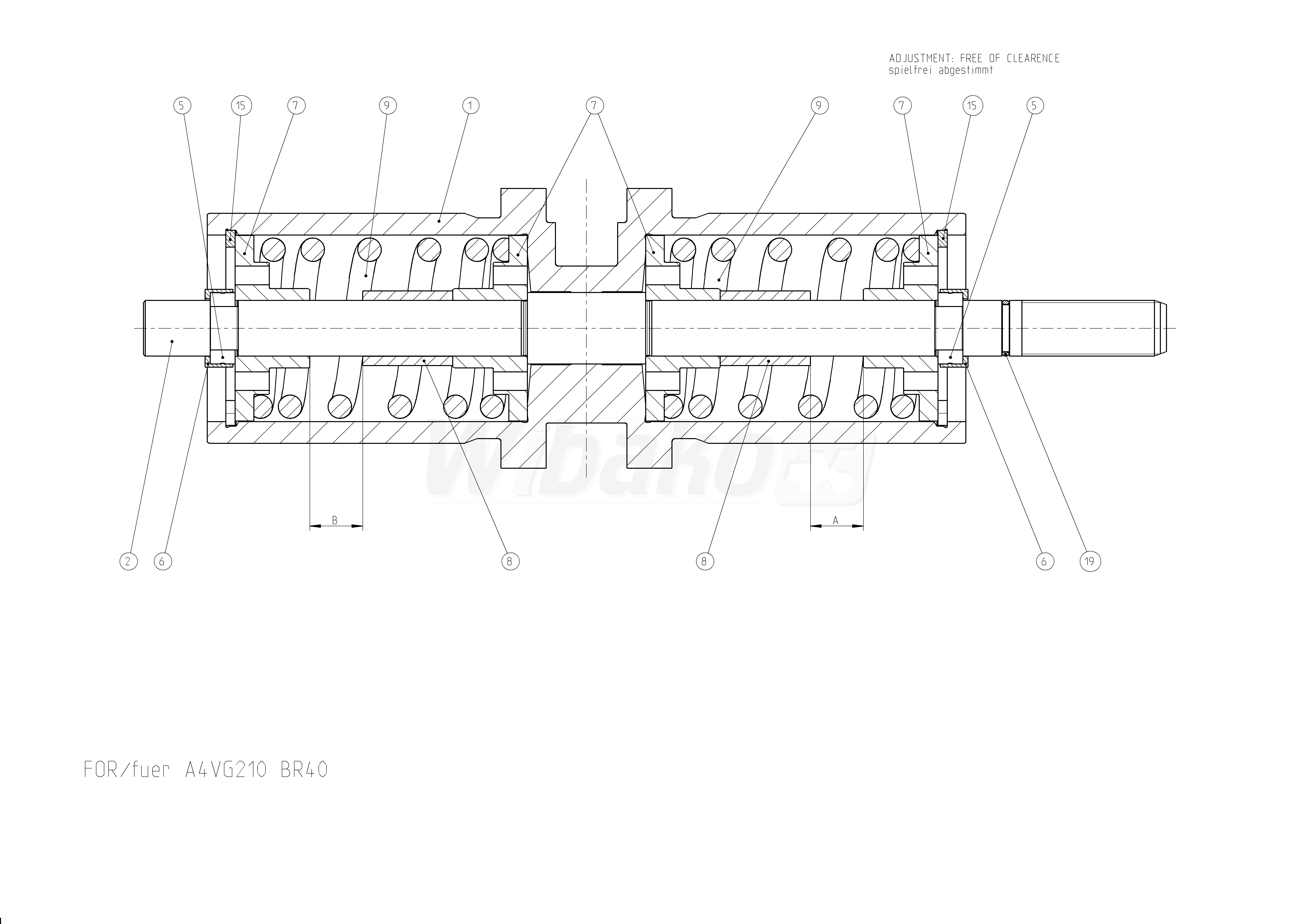

A4VG210EP0DPRM0/40NRNE4A31FE4A1BS00-S (R902208800)
POSITIONING PISTON (34764)

POSITIONING PISTON
(34764)


1

POSITIONING PISTON
(34969)


2

ROD
(34276)


5

RING
(34277)


5

RING
(34278)


5

RING
(34279)


5

RING
(34280)


5

RING
(34281)


5

RING
(34282)


5

RING
(34283)


5

RING
(34284)


6

LOCATING RING
(34285)


7

SPRING DISK
(34970)


8

SPACER BUSHING
(34287)


8

SPACER BUSHING
(34288)


8

SPACER BUSHING
(34289)


8

SPACER BUSHING
(34290)


8

SPACER BUSHING
(34291)


8

SPACER BUSHING
(34292)


8

SPACER BUSHING
(34293)


9

COMPRESSION SPRING
(34971)


15

RETAINING RING
(34972)


19

O-RING
(13428)
