A4VG110OAA0A000/40ARND6T11BB2S5AF4V-0 (R902215401)

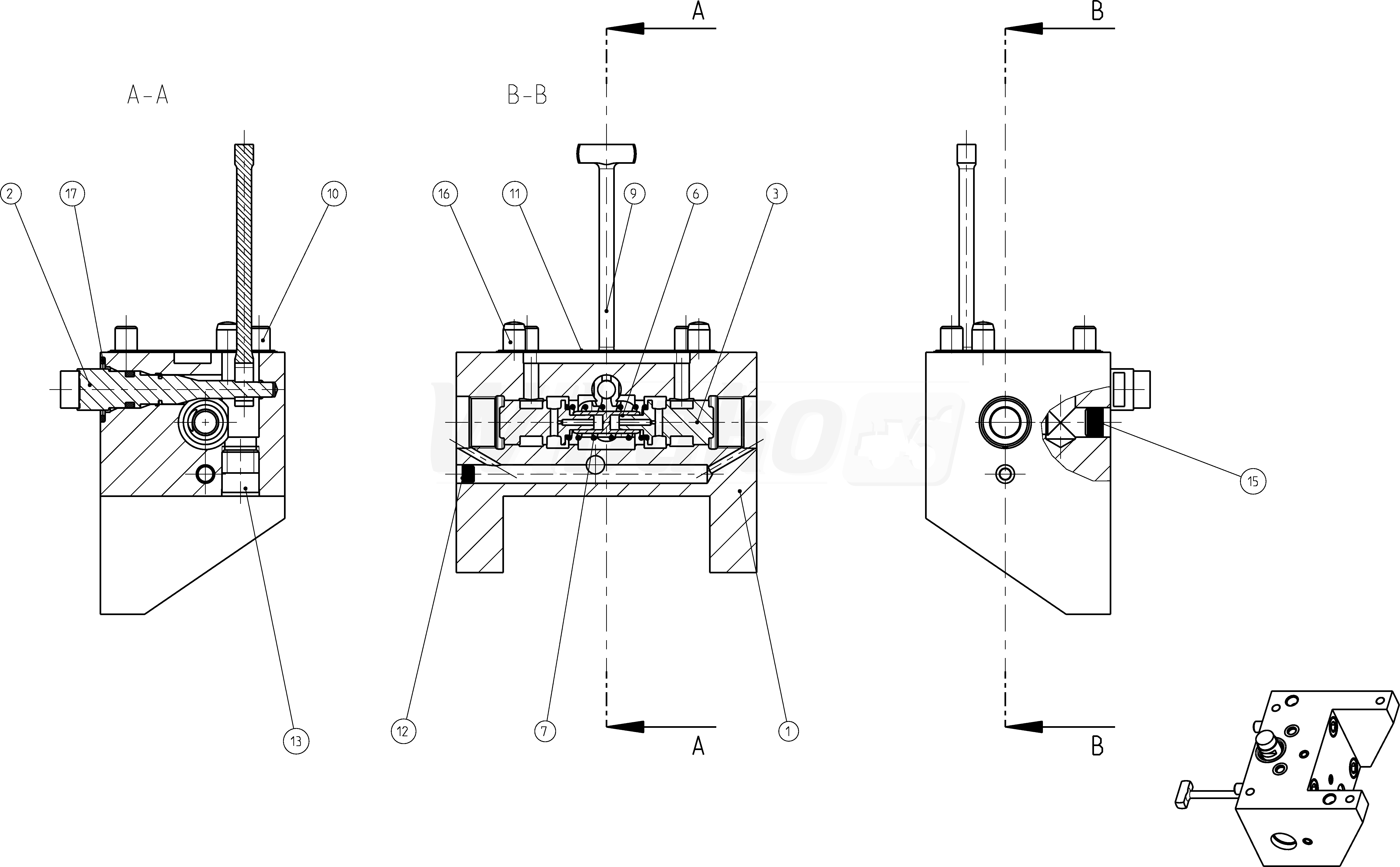

BASIC UNIT (33574)

BASIC UNIT
(33574)


1

HOUSING
(31944)


2

SENSOR SHAFT
(31945)


3

CONTROL PISTON
(33808)


6

SLEEVE
(33809)


7

COMPRESSION SPRING
(31948)


9

LEVER
(32186)


10

SOCKET HEAD CAP SCREW
(14633)


11

SEAL
(16122)


12

SEALING PLUG
(18364)


13

PLUG
(13073)


15

SEALING PLUG
(31908)


16

STRAIGHT PIN
(12694)


17

O-RING
(13428)



Return
