A4VG110SH1D0RB0/40MLND6A11UD4V8AE00-Y (R902217548)
Axial piston variable pump A4VG, swashplate design, nominal pressure 450 bar, maximum pressure 500 bar. Pump, closed circuit. Geometric displacement 110 cm3. Neutral valve U = 12 V and mechanical stroke limiter and ports X3 X4. Series 40. Metric ports according to ISO 6149 with O-ring seal, metric fastening thread according to DIN 13. Direction of rotation: counter-clockwise (viewed on drive shaft). Sealing material: NBR (nitrile rubber), shaft seal in FKM (fluoroelastomer). Mounting flange SAE J744 152-2/4. Splined shaft DIN 5480 W45×2×21×9g. SAE working port A and B, on left side (45° left). Standard rotary group, without boost pump. High-pressure relief valve, direct operated, fixed setting, with low-pressure relief valve, fixed setting. External boost pressure supply. Standard version with installation variants.

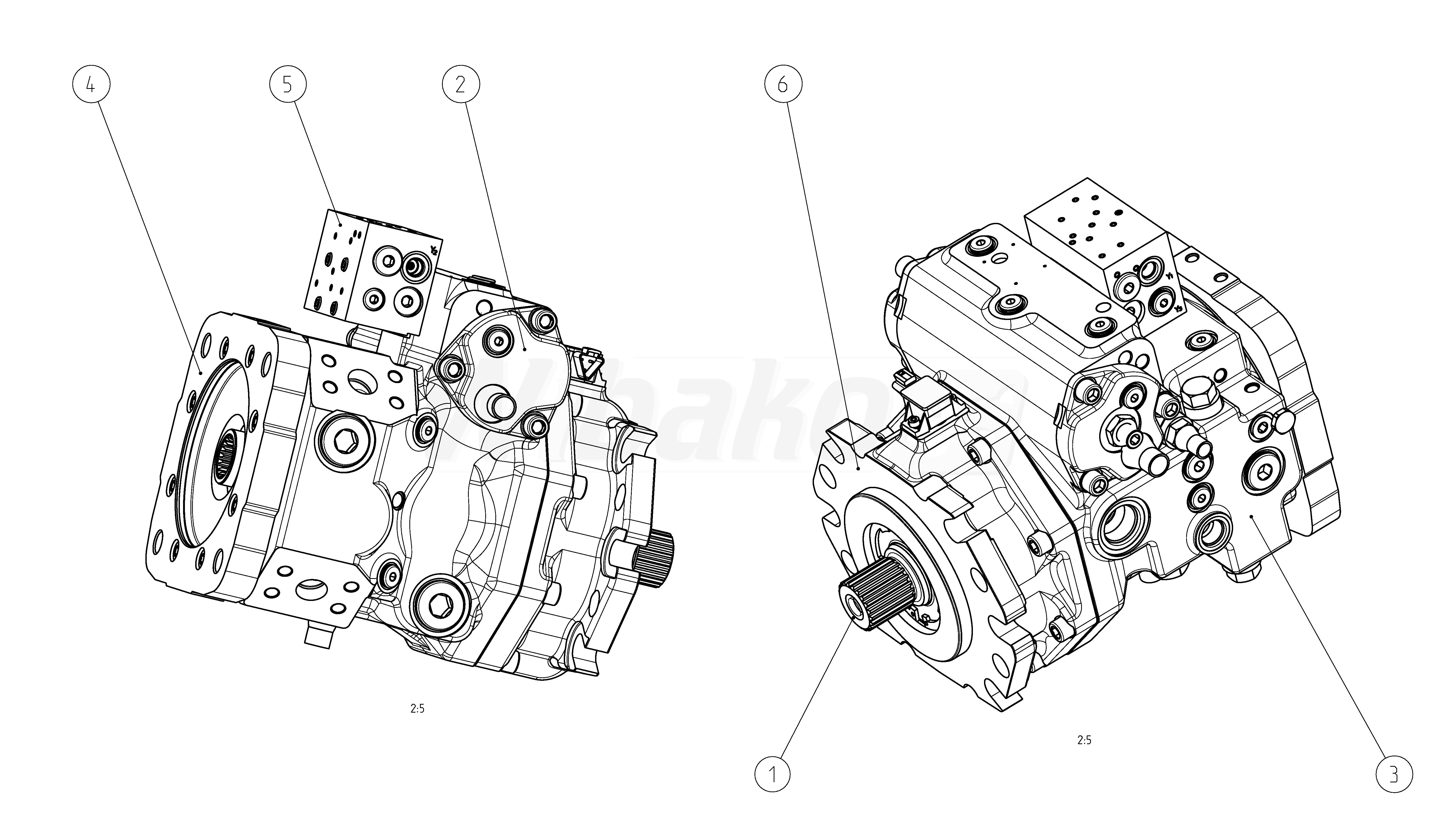

The above diagrams belong to Rexroth www.boschrexroth.com
