A4VG110SH1D/40L+A4VG110SH1D/40L (R902217550)
Set of 2 pumps:
1. Axial piston variable pump A4VG, swashplate design, nominal pressure 450 bar, maximum pressure 500 bar. Pump, closed circuit. Geometric displacement 110 cm3. Neutral valve U = 12 V and mechanical stroke limiter and ports X3 X4. Series 40. Direction of rotation: counter-clockwise (viewed on drive shaft).
2. Axial piston variable pump A4VG, swashplate design, nominal pressure 450 bar, maximum pressure 500 bar. Pump, closed circuit. Geometric displacement 110 cm3. Neutral valve U = 12 V and mechanical stroke limiter and ports X3 X4. Series 40. Direction of rotation: counter-clockwise (viewed on drive shaft).
1. Axial piston variable pump A4VG, swashplate design, nominal pressure 450 bar, maximum pressure 500 bar. Pump, closed circuit. Geometric displacement 110 cm3. Neutral valve U = 12 V and mechanical stroke limiter and ports X3 X4. Series 40. Direction of rotation: counter-clockwise (viewed on drive shaft).
2. Axial piston variable pump A4VG, swashplate design, nominal pressure 450 bar, maximum pressure 500 bar. Pump, closed circuit. Geometric displacement 110 cm3. Neutral valve U = 12 V and mechanical stroke limiter and ports X3 X4. Series 40. Direction of rotation: counter-clockwise (viewed on drive shaft).

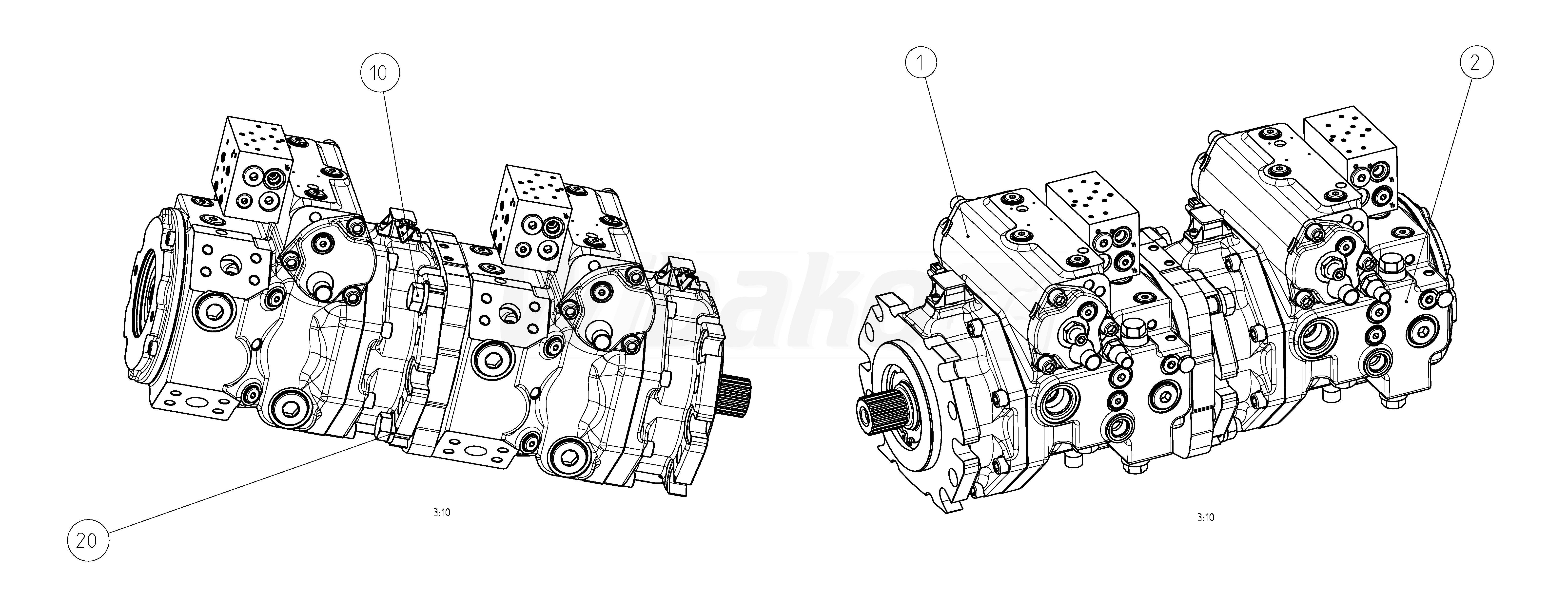

The above diagrams belong to Rexroth www.boschrexroth.com
