A4VG175EP1BPR00/40MRND6T12XB2S5AD00–S (R902222087)
Axial piston variable pump A4VG, swashplate design, nominal pressure 450 bar, maximum pressure 500 bar. Pump, closed circuit. Geometric displacement 175 cm3. Proportional control, electric U = 12 V. Mechanical stroke limiter and stroking chamber pressure port X3 X4. Series 40. Metric ports according to ISO 6149 with O-ring seal, metric fastening thread according to DIN 13. Direction of rotation: clockwise (viewed on drive shaft). Sealing material: NBR (nitrile rubber), shaft seal in FKM (fluoroelastomer). Mounting flange SAE J744 152-2/4. Splined shaft ANSI B92.1a–1976 1 3/4 in 13T 8/16DP. SAE working port A and B, on right side (45° right). Special version.

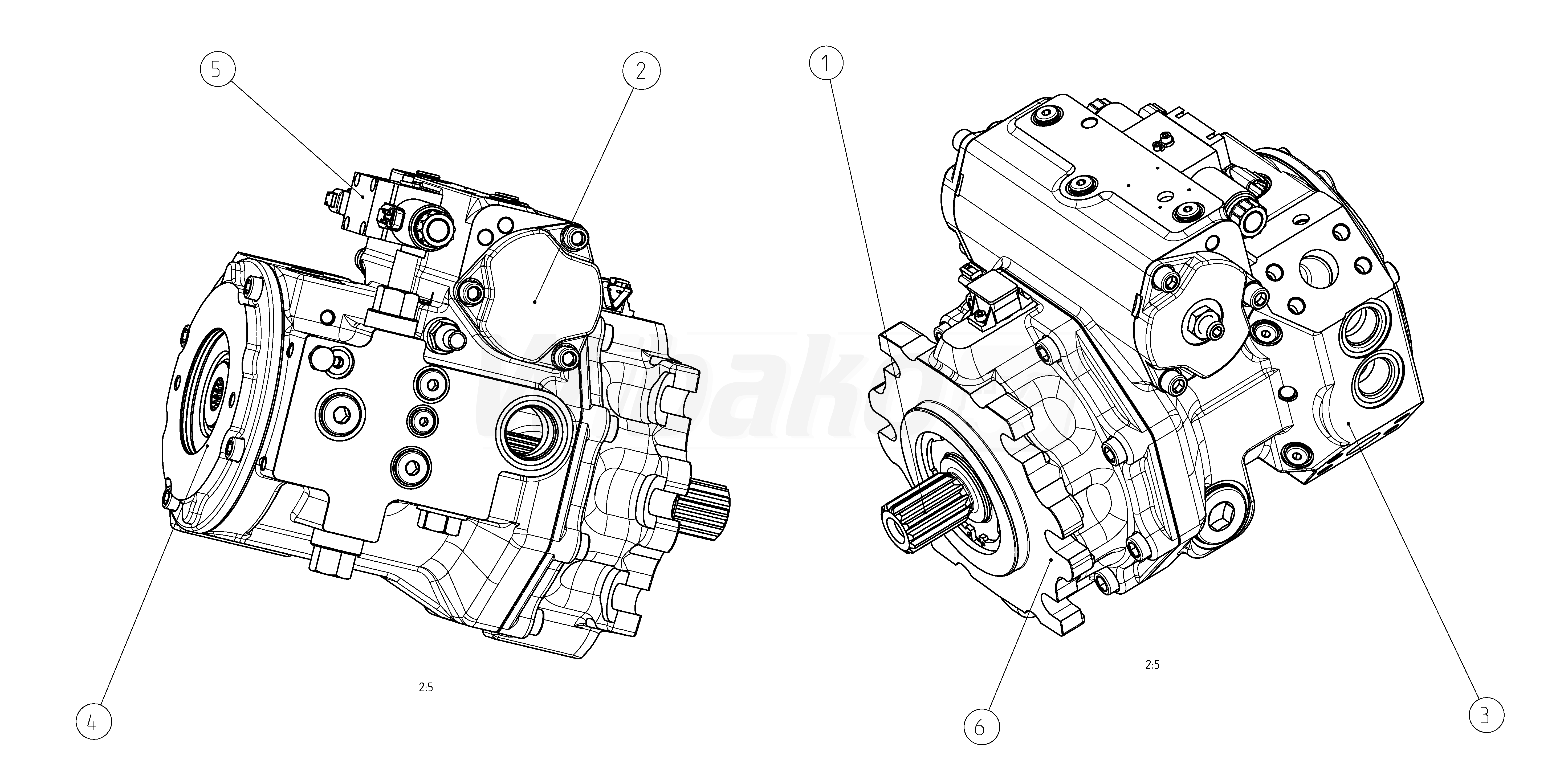

The above diagrams belong to Rexroth www.boschrexroth.com
