A4VG085EPMDP000/40CRNC6T11F0000AK00-S (R902223454)

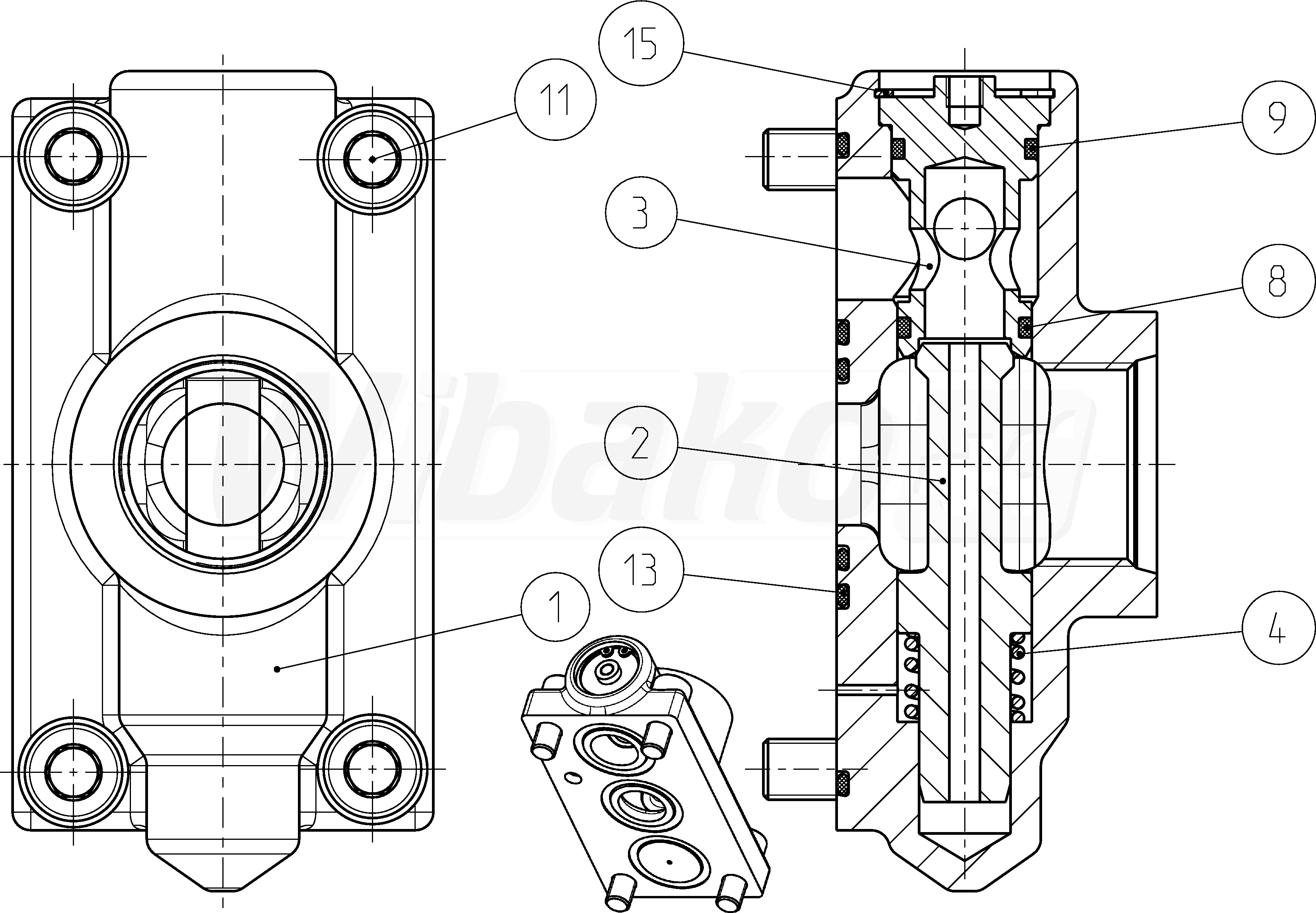

COLD-START VALVE (37055)

COLD-START VALVE
(37055)


1

VALVE PLATE
(37060)


2

VALVE SPOOL
(32620)


3

VALVE SEAT
(32621)


4

COMPRESSION SPRING
(32622)


8

O-RING
(10771)


9

O-RING
(10214)


11

SOCKET HEAD CAP SCREW
(10681)


13

O-RING
(10534)


15

RETAINING RING
(32623)



Return

The above diagrams belong to Rexroth www.boschrexroth.com
