A4VG145EP2D/40+A11VO75DRS/10 (R902226478)
Set of 2 pumps:
1. Axial piston variable pump A4VG, swashplate design, nominal pressure 450 bar, maximum pressure 500 bar. Pump, closed circuit. Geometric displacement 145 cm3. Proportional control, electric U = 24 V. Pressure cut-off, with bypass. Fixed setting, hydraulic, mechanical. Series 40.
2. Axial Piston Variable Pump A11VO. Swashplate design, variable, nominal pressure 350 bar, maximum pressure 400 bar. Open circuit. Size, ≈ displacement Vg maks. 75 cm3. Control unit: pressure control with load sensing.
1. Axial piston variable pump A4VG, swashplate design, nominal pressure 450 bar, maximum pressure 500 bar. Pump, closed circuit. Geometric displacement 145 cm3. Proportional control, electric U = 24 V. Pressure cut-off, with bypass. Fixed setting, hydraulic, mechanical. Series 40.
2. Axial Piston Variable Pump A11VO. Swashplate design, variable, nominal pressure 350 bar, maximum pressure 400 bar. Open circuit. Size, ≈ displacement Vg maks. 75 cm3. Control unit: pressure control with load sensing.

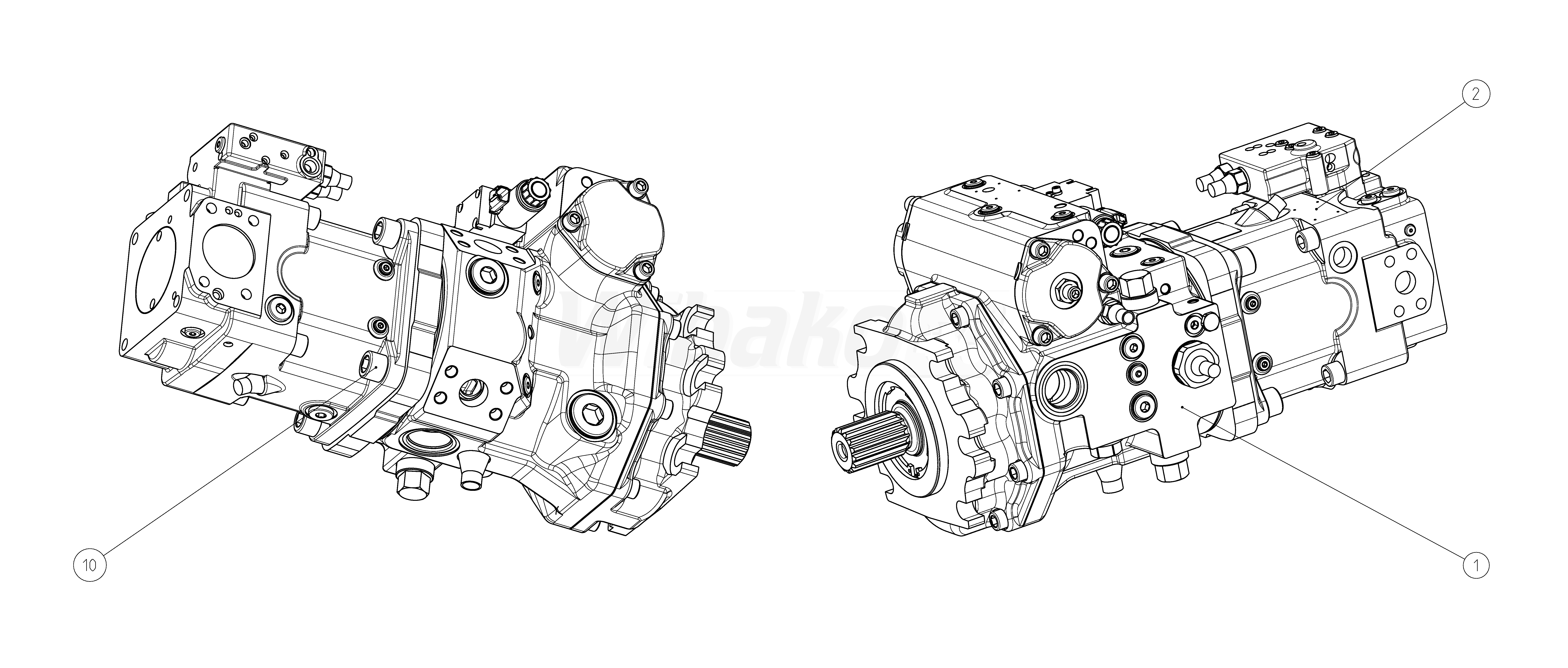

The above diagrams belong to Rexroth www.boschrexroth.com
