A4VG085EV1/40MR+AA10VO63DRF/53R (R902227785)
Set of 2 pumps:
1. Axial piston variable pump A4VG, swashplate design, nominal pressure 450 bar, maximum pressure 500 bar. Pump, closed circuit. Geometric displacement 085 cm3. Series 40. Metric ports according to ISO 6149 with O-ring seal, metric fastening thread according to DIN 13. Direction of rotation: clockwise (viewed on drive shaft).
2. Axial piston variable pump A10VO, swashplate design, open circuit, nominal pressure 250 bar, maximum pressure 315 bar. Series 53. Geometric displacement 63 cm3. Pressure controller with flow controller, hydraulic, X-T open.
1. Axial piston variable pump A4VG, swashplate design, nominal pressure 450 bar, maximum pressure 500 bar. Pump, closed circuit. Geometric displacement 085 cm3. Series 40. Metric ports according to ISO 6149 with O-ring seal, metric fastening thread according to DIN 13. Direction of rotation: clockwise (viewed on drive shaft).
2. Axial piston variable pump A10VO, swashplate design, open circuit, nominal pressure 250 bar, maximum pressure 315 bar. Series 53. Geometric displacement 63 cm3. Pressure controller with flow controller, hydraulic, X-T open.

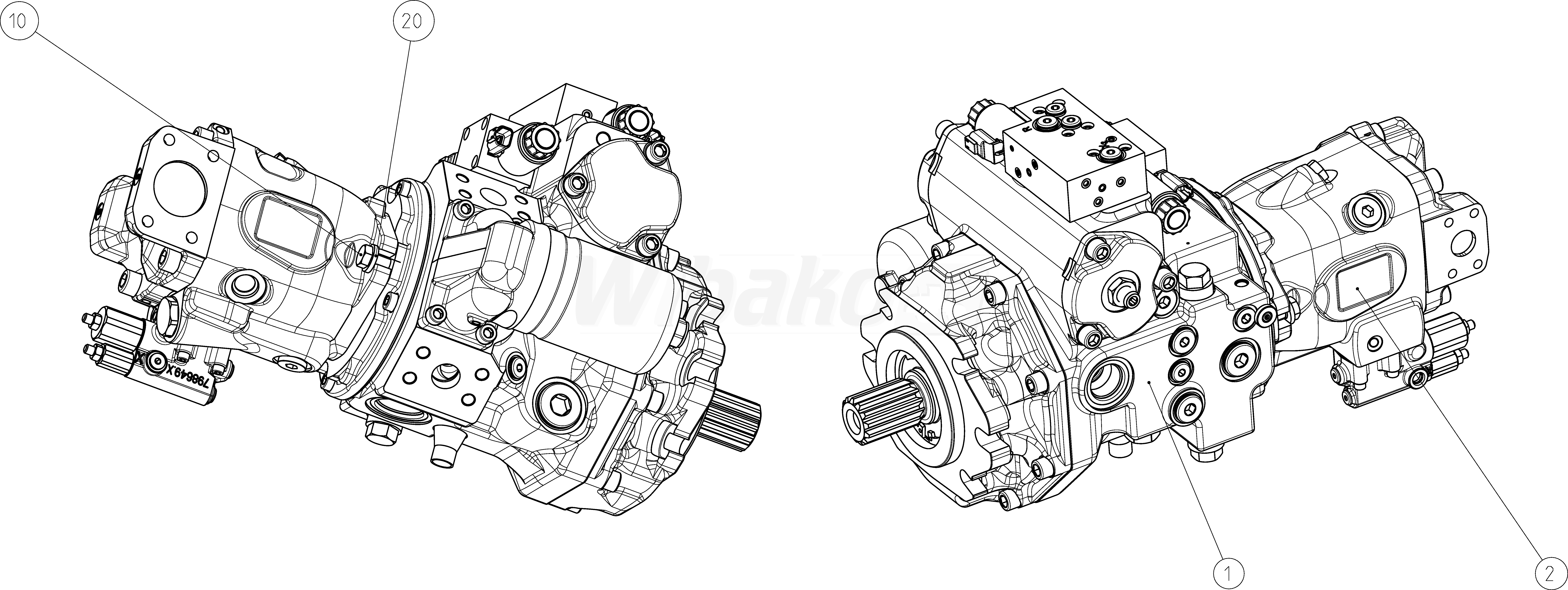

The above diagrams belong to Rexroth www.boschrexroth.com
