AL A10VSO 45 DRG /31R-PPA12G30 (R910988433)

Axial piston variable pump A10VS, swashplate design, open circuit, nominal pressure 280 bar, maximum pressure 350 bar. Series 31. Geometric displacement 45 cm3. Pressure controller with pressure cut-of, hydraulic, remote controlledDEUTSCH - molded connector, 2-pin, without suppressor diode.

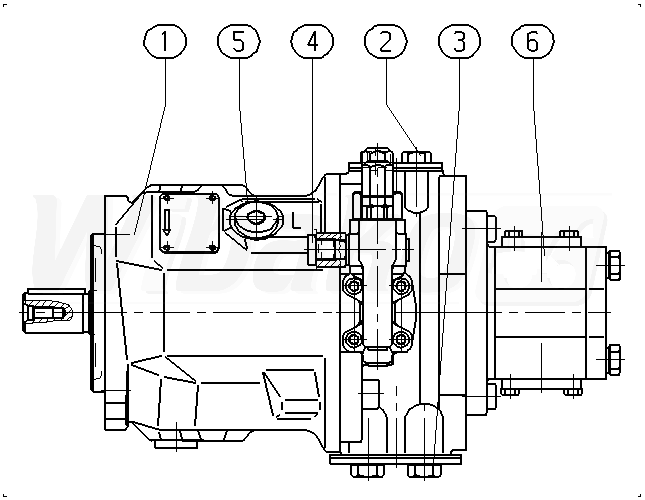

1

AXIAL-PISTON PUMP
(128730)

Group »


2

FLANGE COVER
(13972)


3

FLANGE COVER
(13973)


4

SCREW PLUG
(10015)


5

SEAL SCREW
(15526)


6

FLANGE COVER
(15759)



Return

The above diagrams belong to Rexroth www.boschrexroth.com
