AL A10VSO100 DR /31L-PPA12K26 (R902436880)

Axial piston variable pump A10VS, swashplate design, open circuit, nominal pressure 280 bar, maximum pressure 350 bar. Series 31. Geometric displacement 100 cm3. Pressure controller, hydraulic. DEUTSCH - molded connector, 2-pin, without suppressor diode.

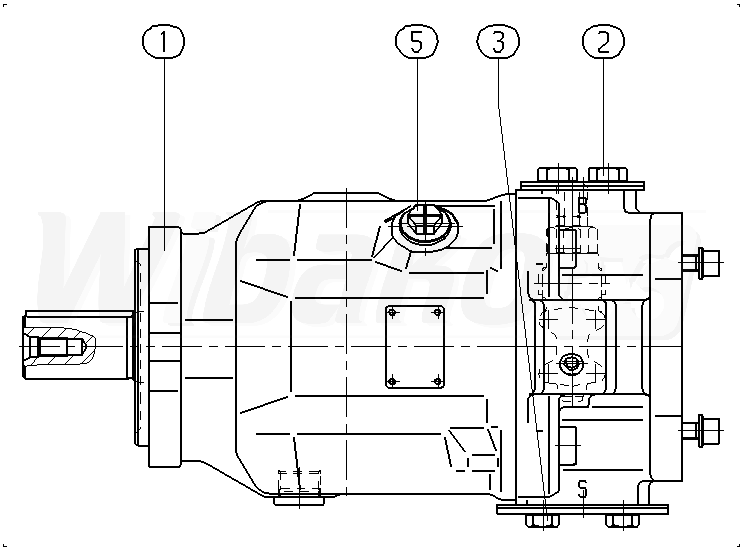

1

AXIAL-PISTON PUMP
(157902)

Group »


2

FLANGE COVER
(15525)


3

FLANGE COVER
(19927)


5

SEAL SCREW
(15757)



Return

The above diagrams belong to Rexroth www.boschrexroth.com
