ALA10VSO100DG/31R-PSA12KB5 (R910983136)
Axial piston variable pump A10VS, swashplate design, open circuit, nominal pressure 280 bar, maximum pressure 350 bar. Series 31. Geometric displacement 100 cm3. Two-point control, direct operated. Drive splined shaft ANSI B92.1a.

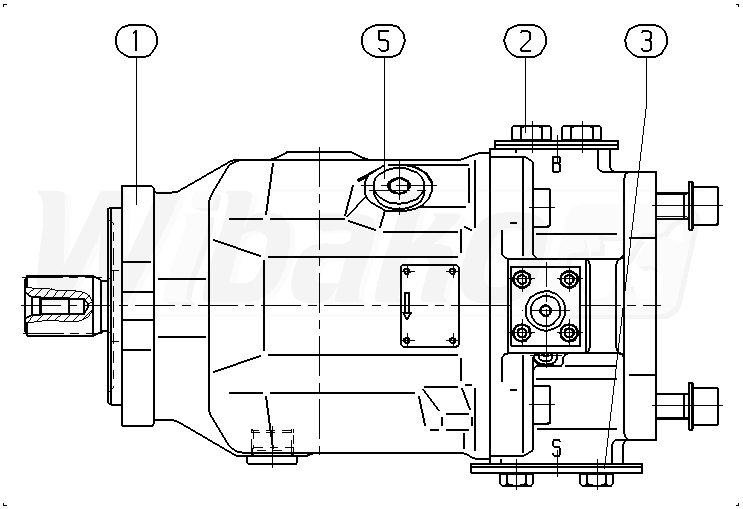

The above diagrams belong to Rexroth www.boschrexroth.com
