A4VG110EP1XCR00/40MRND6XX2VB3S4HX00-S (R902229277)
Axial piston variable pump A4VG, swashplate design, nominal pressure 450 bar, maximum pressure 500 bar. Pump, closed circuit. Geometric displacement 110 cm3. Proportional control, electric U = 12 V. Series 40. Metric ports according to ISO 6149 with O-ring seal, metric fastening thread according to DIN 13. Direction of rotation: clockwise (viewed on drive shaft). Sealing material: NBR (nitrile rubber), shaft seal in FKM (fluoroelastomer). Mounting flange SAE J744 152-2/4. Special version.

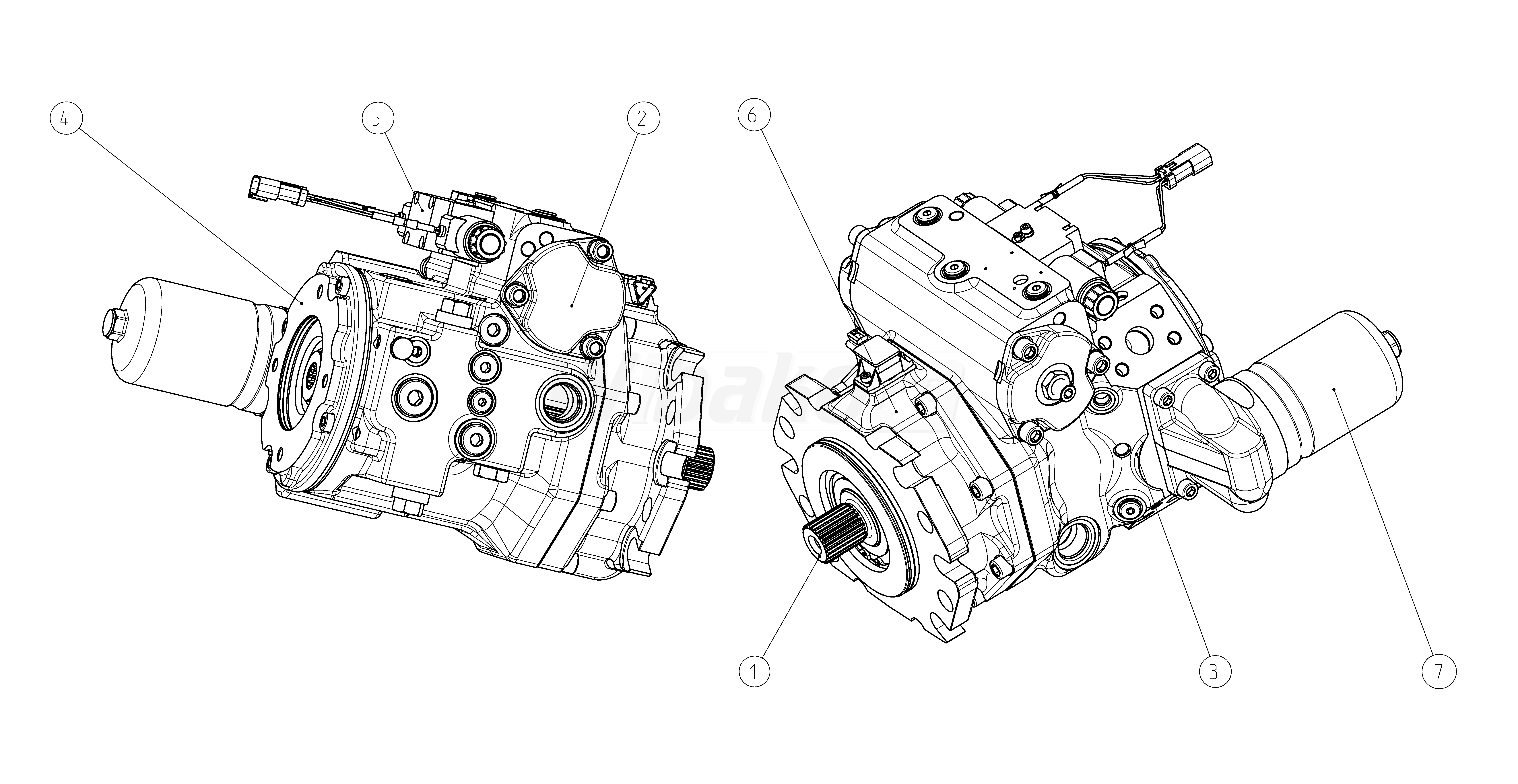

The above diagrams belong to Rexroth www.boschrexroth.com
