ALAA10VSO140DFR1/31R-PKD62K07-S1092 (R902431186)

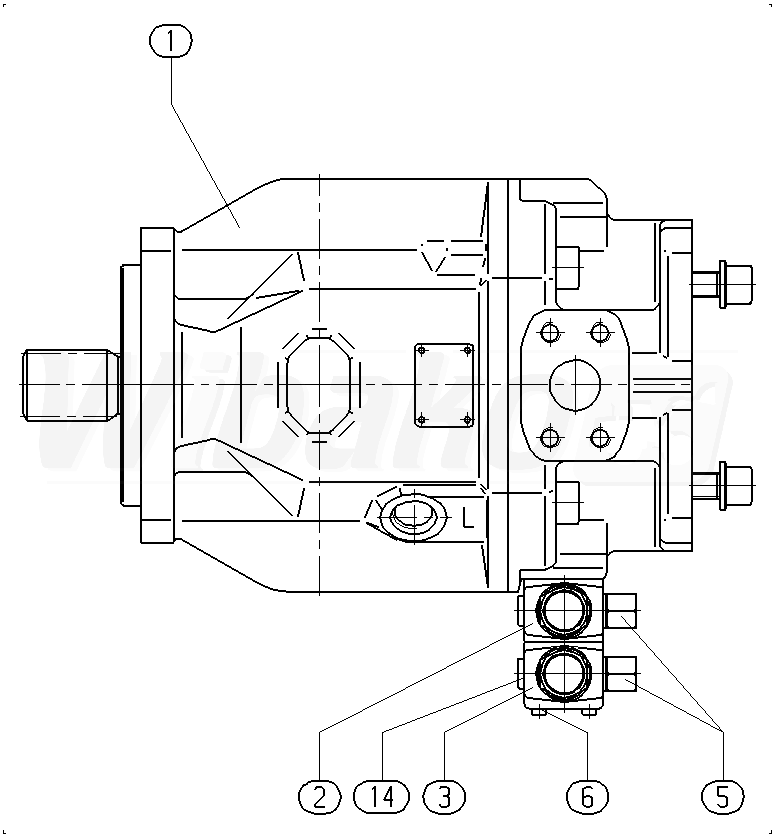

AXIAL-PISTON PUMP (136406)

AXIAL-PISTON PUMP
(136406)


1

BASE UNIT
(136357)

Group »


2

CONTROL VALVE
(122009)

Group »


3

CONTROL VALVE
(117207)

Group »


5

ADAPTER
(121811)

Group »


6

SOCKET HEAD CAP SCREW
(15901)


7

SIDE MARKER RING
(53594)


14

SCREW PLUG
(10015)



Return

The above diagrams belong to Rexroth www.boschrexroth.com
