A4VG140EP4D1/32R-NSF02F001KP-S (R902231024)

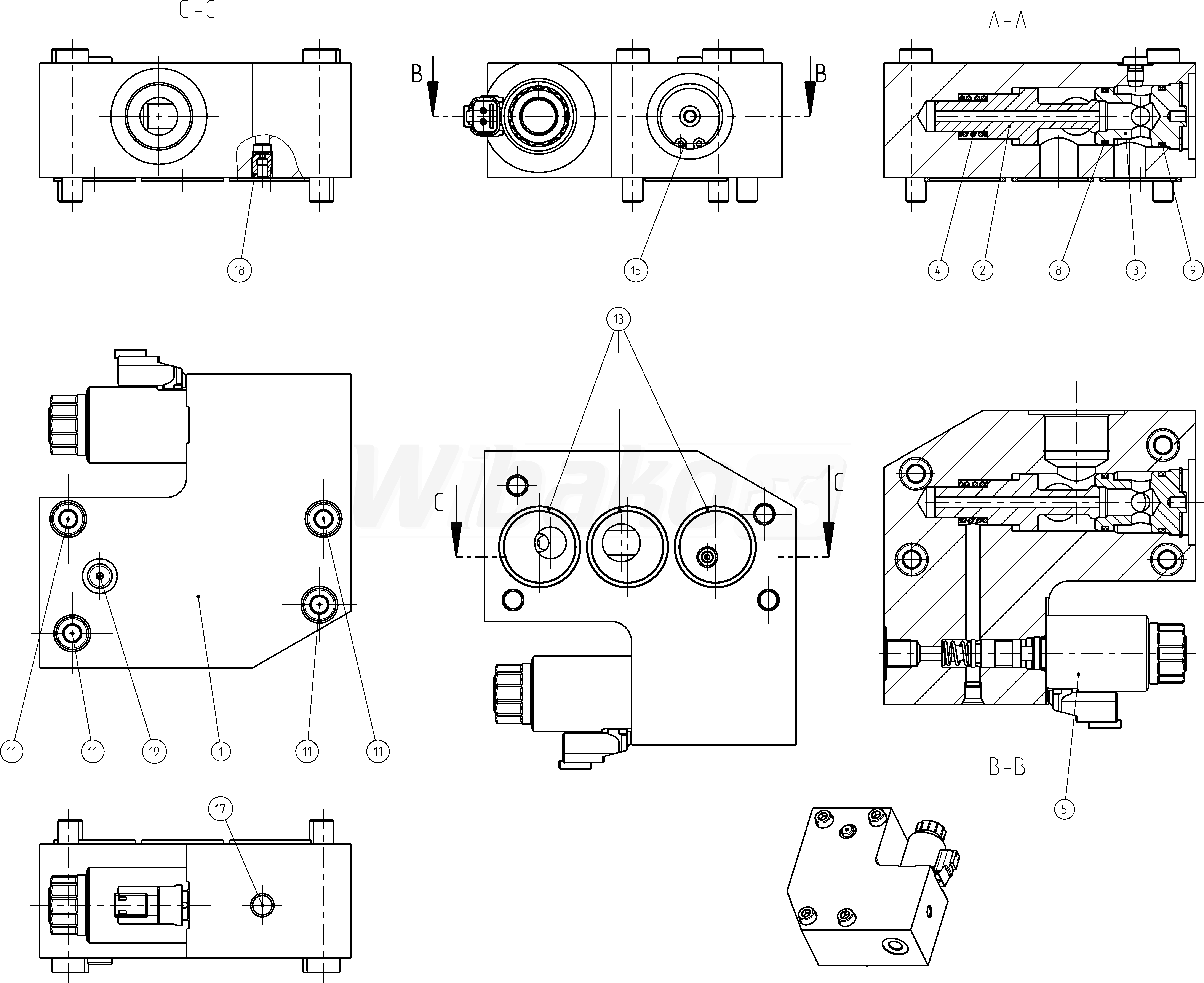

FILTERING PLATE (37262)

FILTERING PLATE
(37262)


1

VALVE BLOCK
(37265)


2

VALVE SPOOL
(37266)


3

VALVE SEAT
(37267)


4

COMPRESSION SPRING
(37268)


5

UNLOADING VALVE
(37269)

Group »


8

O-RING
(10470)


9

O-RING
(10695)


11

SOCKET HEAD CAP SCREW
(15248)


13

O-RING
(11969)


15

RETAINING RING
(37270)


17

DOUBLE BREAK-OFF PLUG
(19009)


18

NOZZLE
(10400)


19

SCREW PLUG
(10330)



Return

The above diagrams belong to Rexroth www.boschrexroth.com
