A4VG110EP0DP0X0/40NRND6C81F0000BU00-S (R902231270)

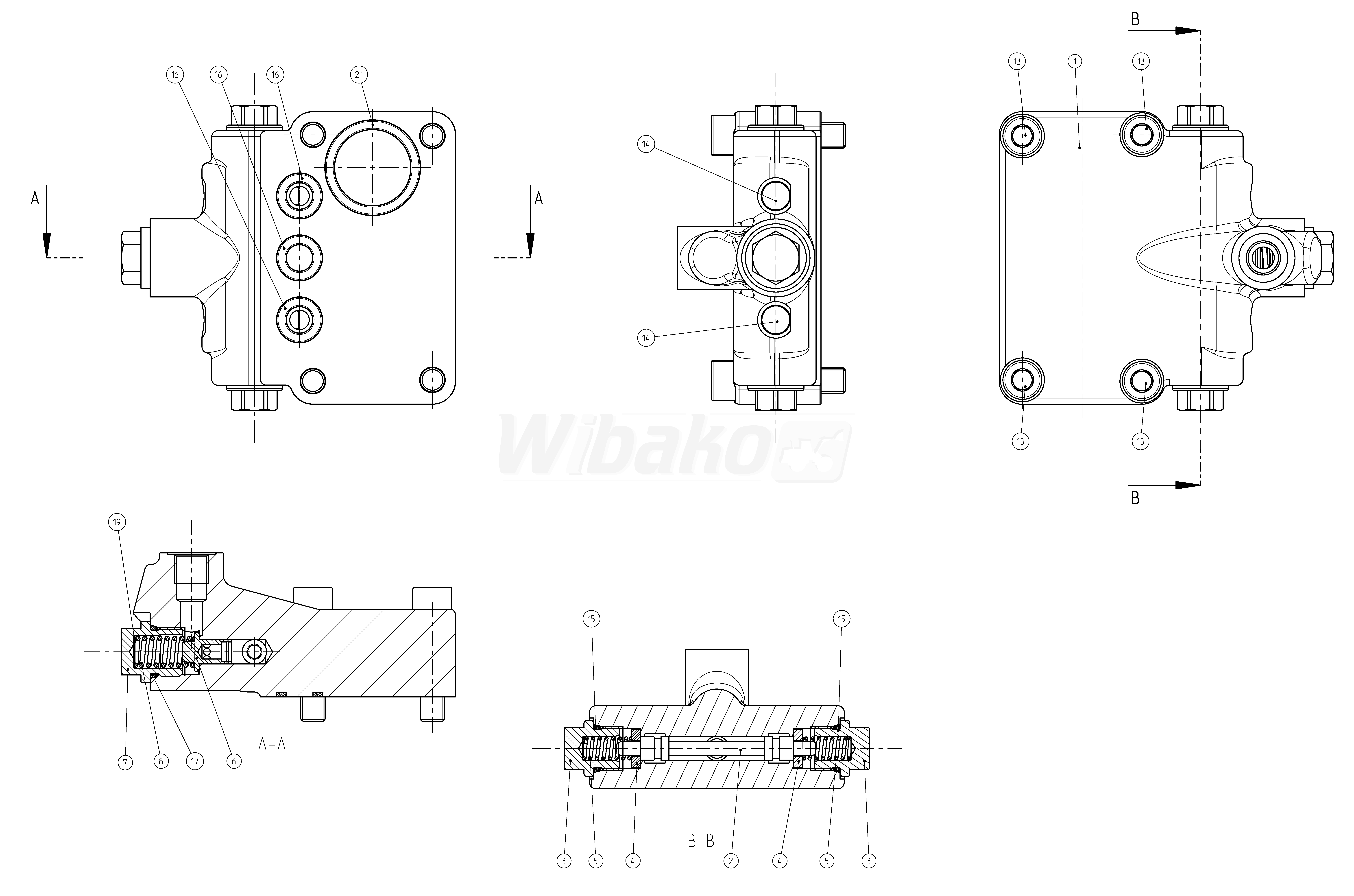

FLUSH/BOOST PRESSURE VALVE (37449)

FLUSH/BOOST PRESSURE VALVE
(37449)


1

FLUSHING VALVE HOUSING
(37504)


2

FLUSHING PISTON
(34950)


3

SCREW PLUG
(34951)


4

WASHER
(11714)


5

COMPRESSION SPRING
(11715)


6

VALVE SPOOL
(19711)


7

SCREW PLUG
(34952)


8

COMPRESSION SPRING
(11716)


13

SOCKET HEAD CAP SCREW
(11548)


14

DOUBLE BREAK-OFF PLUG
(19010)


15

O-RING
(11818)


16

O-RING
(11092)


17

O-RING
(34953)


19

SHIM RING
(11723)


19

SHIM RING
(11724)


19

SHIM RING
(11725)


21

O-RING
(11969)
