A4VG085HW8D00T0/40ALNC6V81BB2S4AD00-Y (R902232839)
Axial piston variable pump A4VG, swashplate design, nominal pressure 450 bar, maximum pressure 500 bar. Pump, closed circuit. Geometric displacement 085 cm3. Proportional control, hydraulic, mechanical servo, hexagon shaft with lever with neutral position switch. Pressure cut-off, with bypass. Fixed setting, hydraulic, mechanical. Without connector. Without swivel angle sensor. Stroking chamber pressure port X3 X4. Without DA control valve. Series 40. High-pressure relief valve, direct operated, fixed setting, with low-pressure relief valve, fixed setting. Standard version with installation variants.

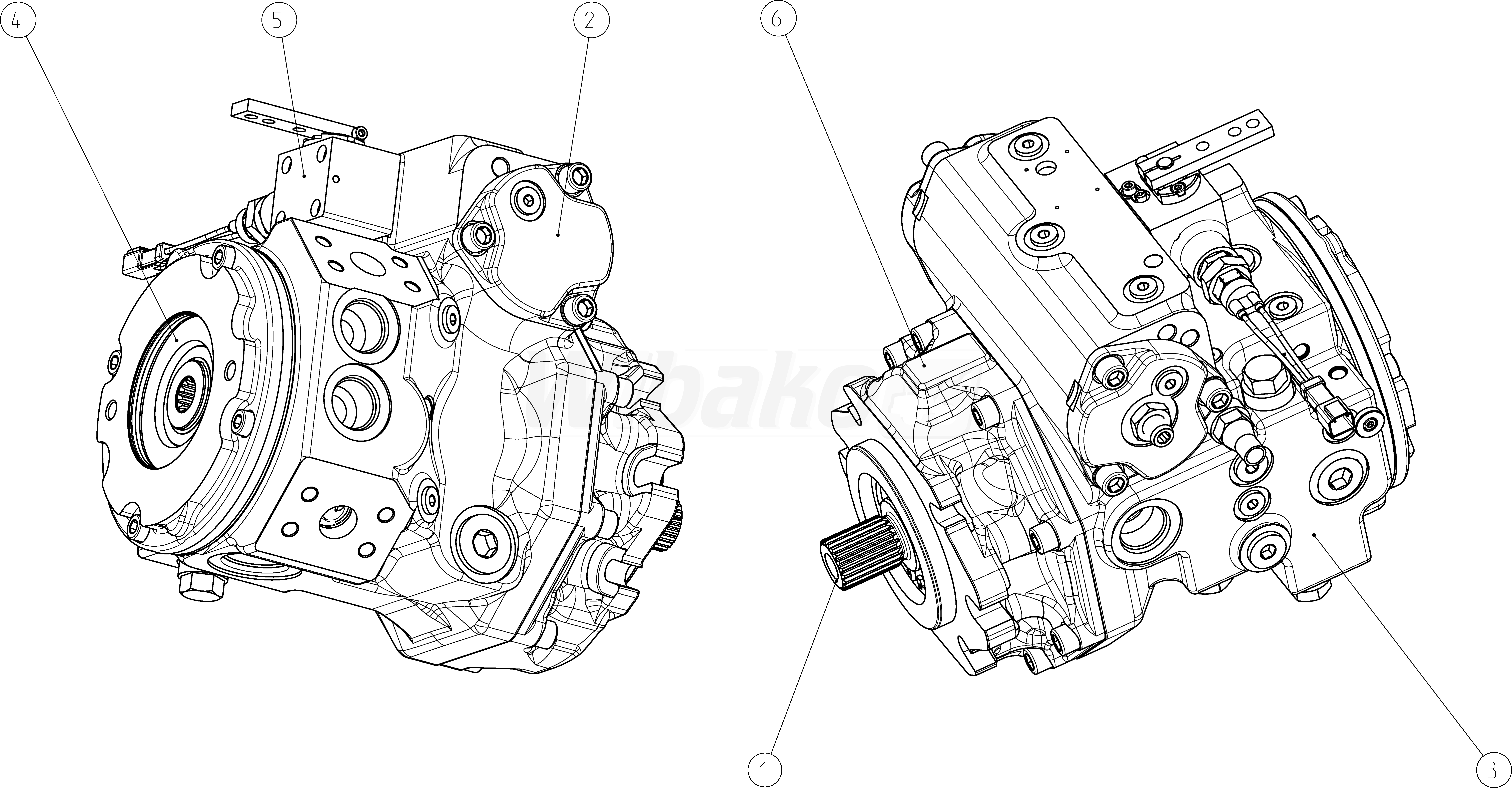

The above diagrams belong to Rexroth www.boschrexroth.com
