A4VG145EP2DP0T0/40ALND6T11FA1S2AD00-0 (R902232855)
Axial piston variable pump A4VG, swashplate design, nominal pressure 450 bar, maximum pressure 500 bar. Pump, closed circuit. Geometric displacement 145 cm3. Proportional control, electric U = 24 V. Pressure cut-off, with bypass. Fixed setting, hydraulic, mechanical. DEUTSCH molded connector, 2-pin – without suppressor diode. Without swivel angle sensor. Stroking chamber pressure port X3 X4. Without DA control valve. Series 40. High-pressure relief valve, direct operated, fixed setting, with low-pressure relief valve, fixed setting.

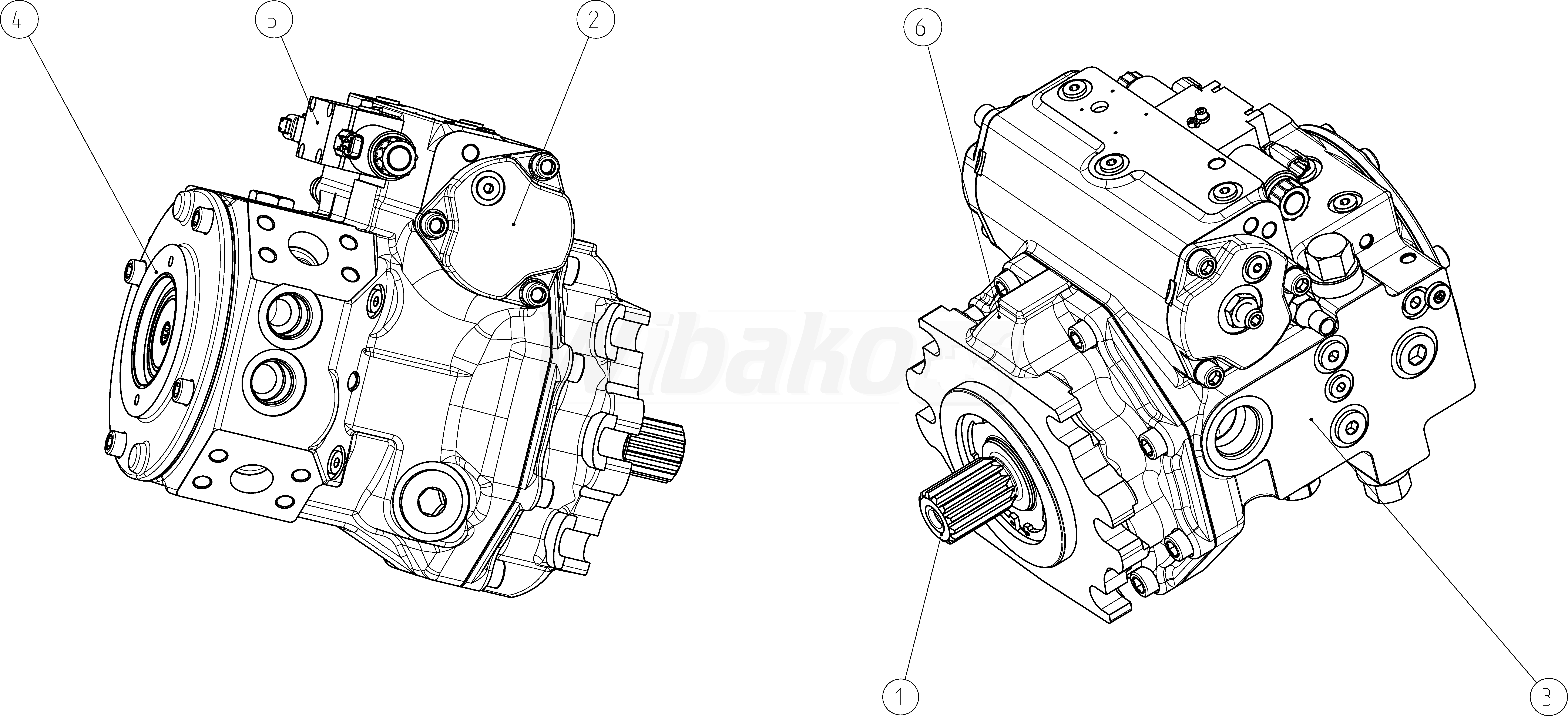

The above diagrams belong to Rexroth www.boschrexroth.com
