AP A10V O140 DFR1/31L-PSD11N00 -SO527 (R902432359)

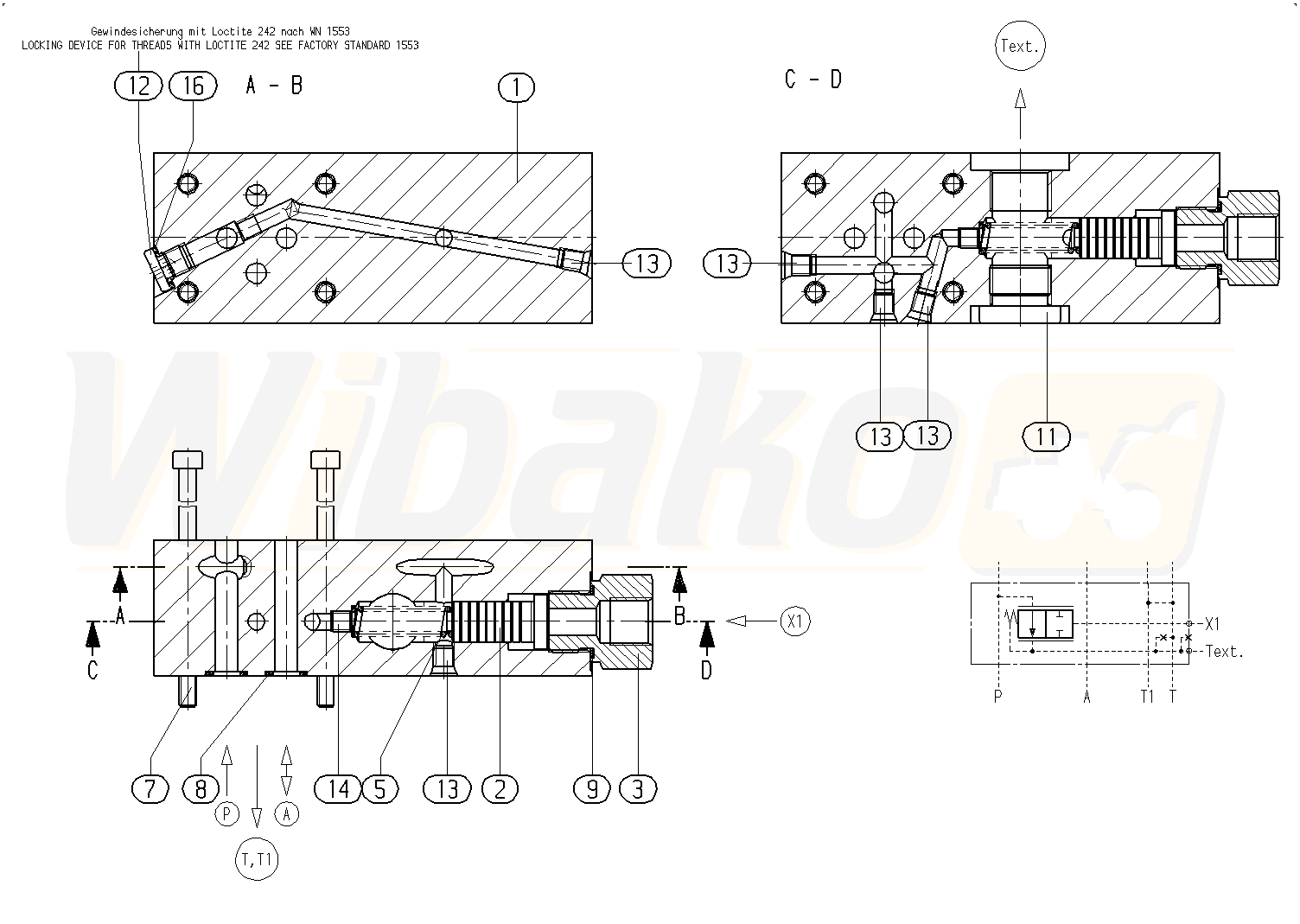

FLUSHING VALVE (148918)

FLUSHING VALVE
(148918)


1

FLUSHING VALVE HOUSING
(121893)


2

FLUSHING PISTON
(105298)


3

REDUCTION THREADED JOINT
(121894)


5

COMPRESSION SPRING
(105300)


7

SOCKET HEAD CAP SCREW
(15594)


8

O-RING
(13281)


9

SEAL RING
(15642)


11

SCREW PLUG
(11292)


12

SCREW PLUG
(11918)


13

DOUBLE BREAK-OFF PLUG
(18990)


14

SETSCREW
(15619)


16

SEAL RING
(10991)



Return

The above diagrams belong to Rexroth www.boschrexroth.com
