A4VG110EP1DP000/40ALNC6V81B0000AS00-Y (R902233373)
Axial piston variable pump A4VG, swashplate design, nominal pressure 450 bar, maximum pressure 500 bar. Pump, closed circuit. Geometric displacement 110 cm3. Proportional control, electric U = 12 V. Pressure cut-off, with bypass. Fixed setting, hydraulic, mechanical. DEUTSCH molded connector, 2-pin – without suppressor diode. Without swivel angle sensor. Without additional function. Without DA control valve. Series 40. High-pressure relief valve, direct operated, fixed setting, with low-pressure relief valve, fixed setting. Standard version with installation variants.

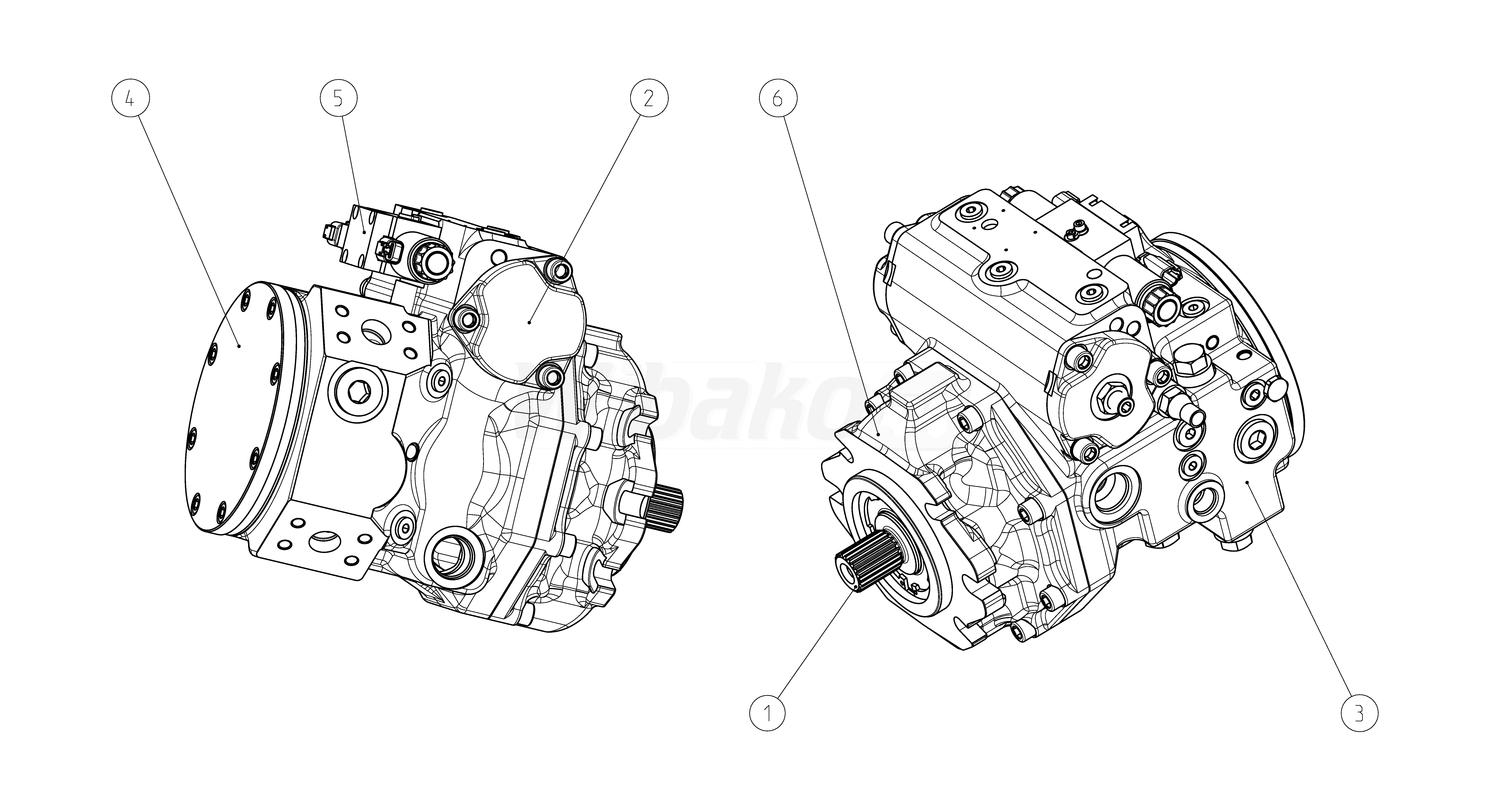

The above diagrams belong to Rexroth www.boschrexroth.com
