A4VG175EP1AC000/40MLND6T11V0000AD00-0 (R902233654)
Axial piston variable pump A4VG, swashplate design, nominal pressure 450 bar, maximum pressure 500 bar. Pump, closed circuit. Geometric displacement 175 cm3. Proportional control, electric U = 12 V. Series 40. Metric ports according to ISO 6149 with O-ring seal, metric fastening thread according to DIN 13. Direction of rotation: counter-clockwise (viewed on drive shaft). Sealing material: NBR (nitrile rubber), shaft seal in FKM (fluoroelastomer). Mounting flange SAE J744 152-2/4. Splined shaft ANSI B92.1a–1976 1 3/4 in 13T 8/16DP. SAE working port A and B, on left side (45° left). High-speed rotary group, boost pump integrated, standard internal gear pump. Without through drive. High-pressure relief valve, direct operated, fixed setting, with low-pressure relief valve, fixed setting. Filtration in the boost pump pressure line. Ports for external boost circuit filtration (Fe and Fa).

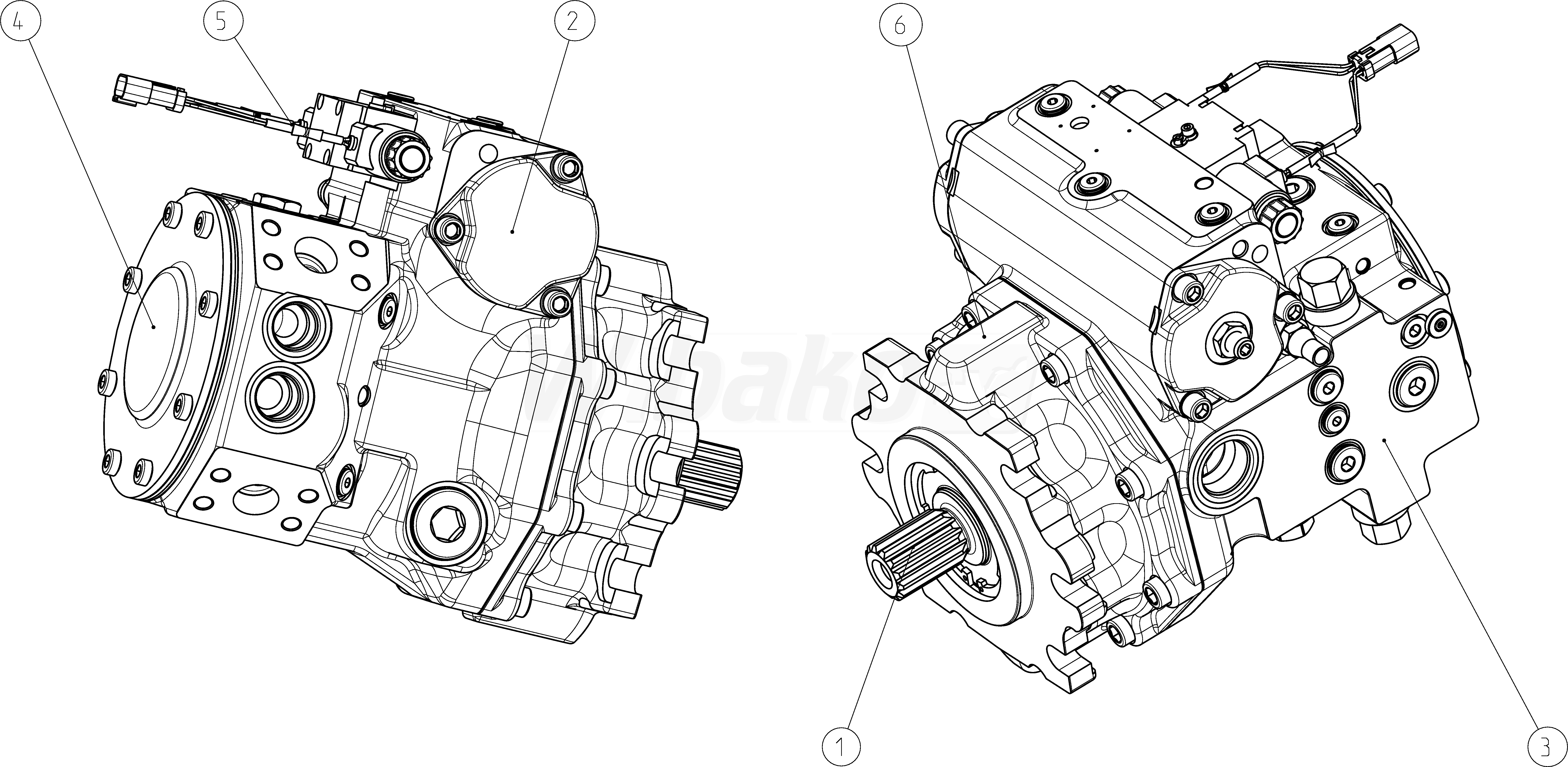

The above diagrams belong to Rexroth www.boschrexroth.com
