A4VG110HW8D0000/40MLNC6T12V0000HS00-0 (R902233655)
Axial piston variable pump A4VG, swashplate design, nominal pressure 450 bar, maximum pressure 500 bar. Pump, closed circuit. Geometric displacement 110 cm3. Proportional control, hydraulic, mechanical servo, hexagon shaft with lever with neutral position switch. Pressure cut-off, with bypass. Fixed setting, hydraulic, mechanical. Without connector. Without swivel angle sensor. Without additional function. Without DA control valve. Series 40. Metric ports according to ISO 6149 with O-ring seal, metric fastening thread according to DIN 13. Direction of rotation: counter-clockwise (viewed on drive shaft). Sealing material: NBR (nitrile rubber), shaft seal in FKM (fluoroelastomer). Mounting flange SAE J744 127-2/4. Splined shaft ANSI B92.1a–1976 1 3/4 in 13T 8/16DP. SAE working port A and B, on right side (45° right). High-speed rotary group, boost pump integrated, standard internal gear pump. Without through drive.

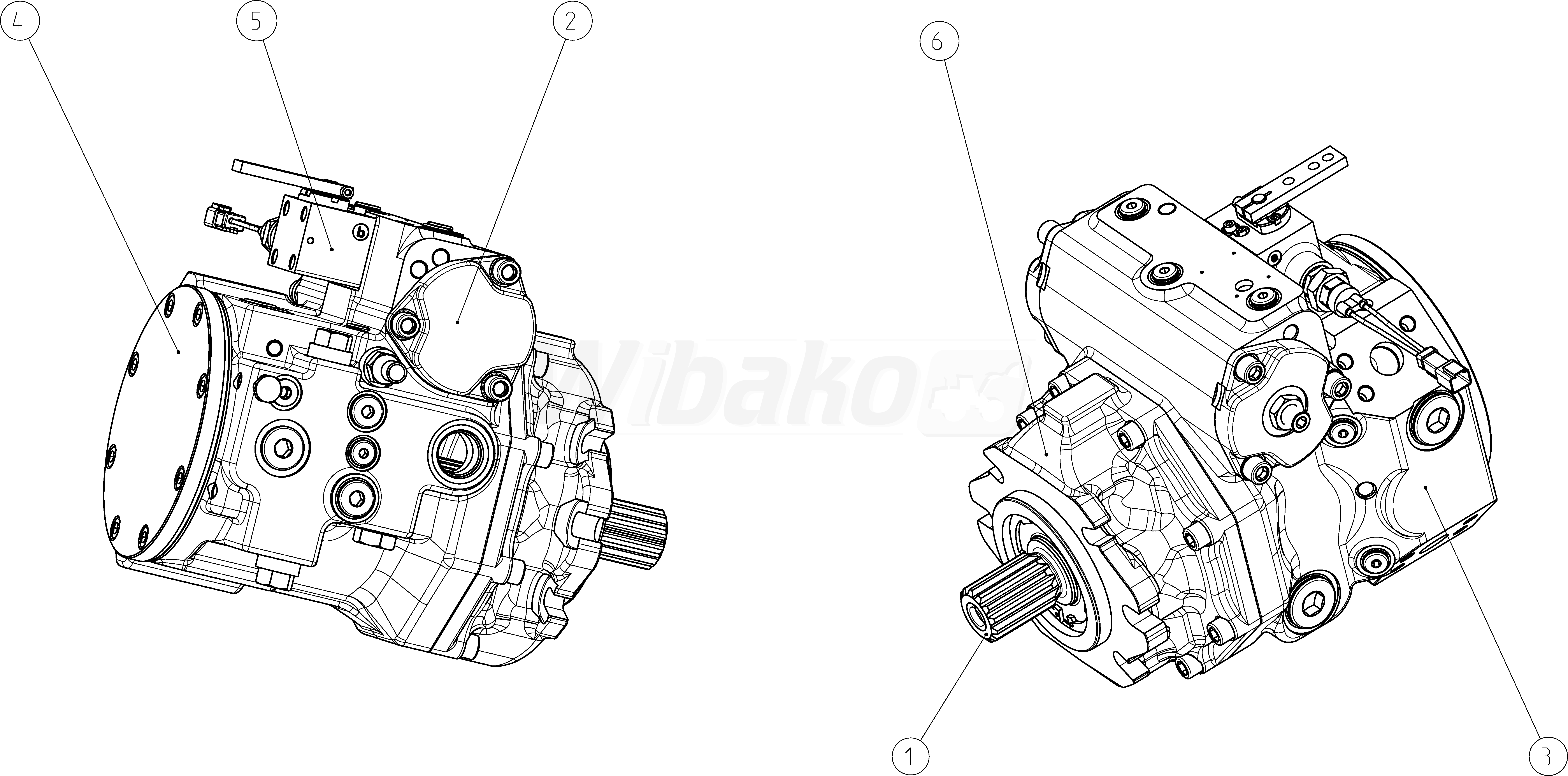

The above diagrams belong to Rexroth www.boschrexroth.com
