A4VG110EV2DP000/40JRND6T11FC1S7AD00-S (R902237052)

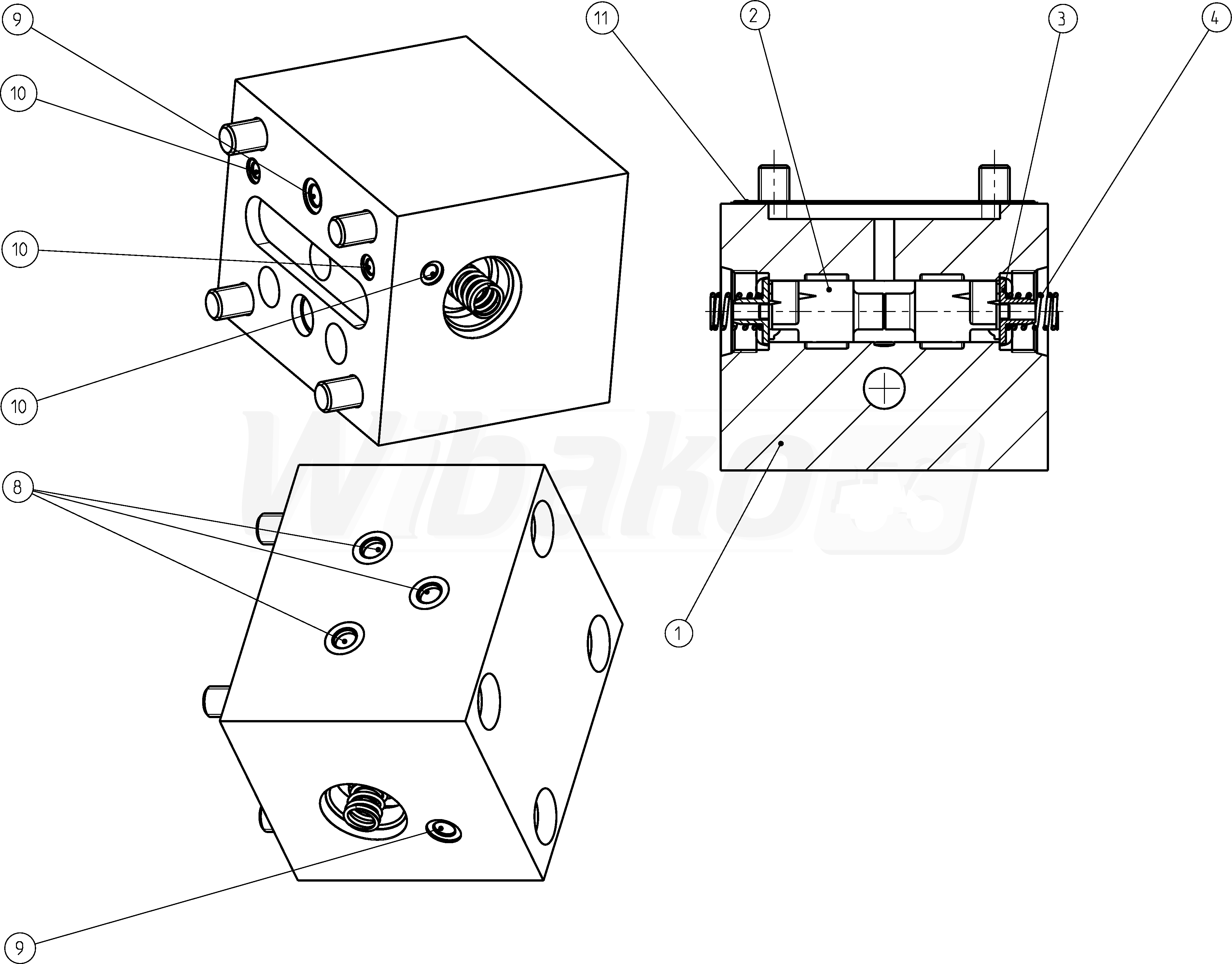

BASIC UNIT (37827)

BASIC UNIT
(37827)


1

HOUSING
(37945)


2

CONTROL PISTON
(31871)


3

SPRING DISK
(13196)


4

COMPRESSION SPRING
(10496)


8

SEALING PLUG
(31908)


9

SEALING PLUG
(16121)


10

SEALING PLUG
(18364)


11

SEAL
(16122)


43

SOCKET HEAD CAP SCREW
(10505)



Return

The above diagrams belong to Rexroth www.boschrexroth.com
