A4VG085XX20PR00/40MLNC6T11UB2S5CE00-S (R902237440)
Axial piston variable pump A4VG, swashplate design, nominal pressure 450 bar, maximum pressure 500 bar. Pump, closed circuit. Geometric displacement 085 cm3. Series 40. Metric ports according to ISO 6149 with O-ring seal, metric fastening thread according to DIN 13. Direction of rotation: counter-clockwise (viewed on drive shaft). Sealing material: NBR (nitrile rubber), shaft seal in FKM (fluoroelastomer). Mounting flange SAE J744 127-2/4. Splined shaft ANSI B92.1a–1976 1 3/4 in 13T 8/16DP. SAE working port A and B, on left side (45° left). Standard rotary group, without boost pump. Flange SAE J744: diameter- 101-2 (B), mounting- horizontal, code- B2. Hub for splined shaft: diameter- 7/8 in 13T 16/32DP, code- S5. Special version.

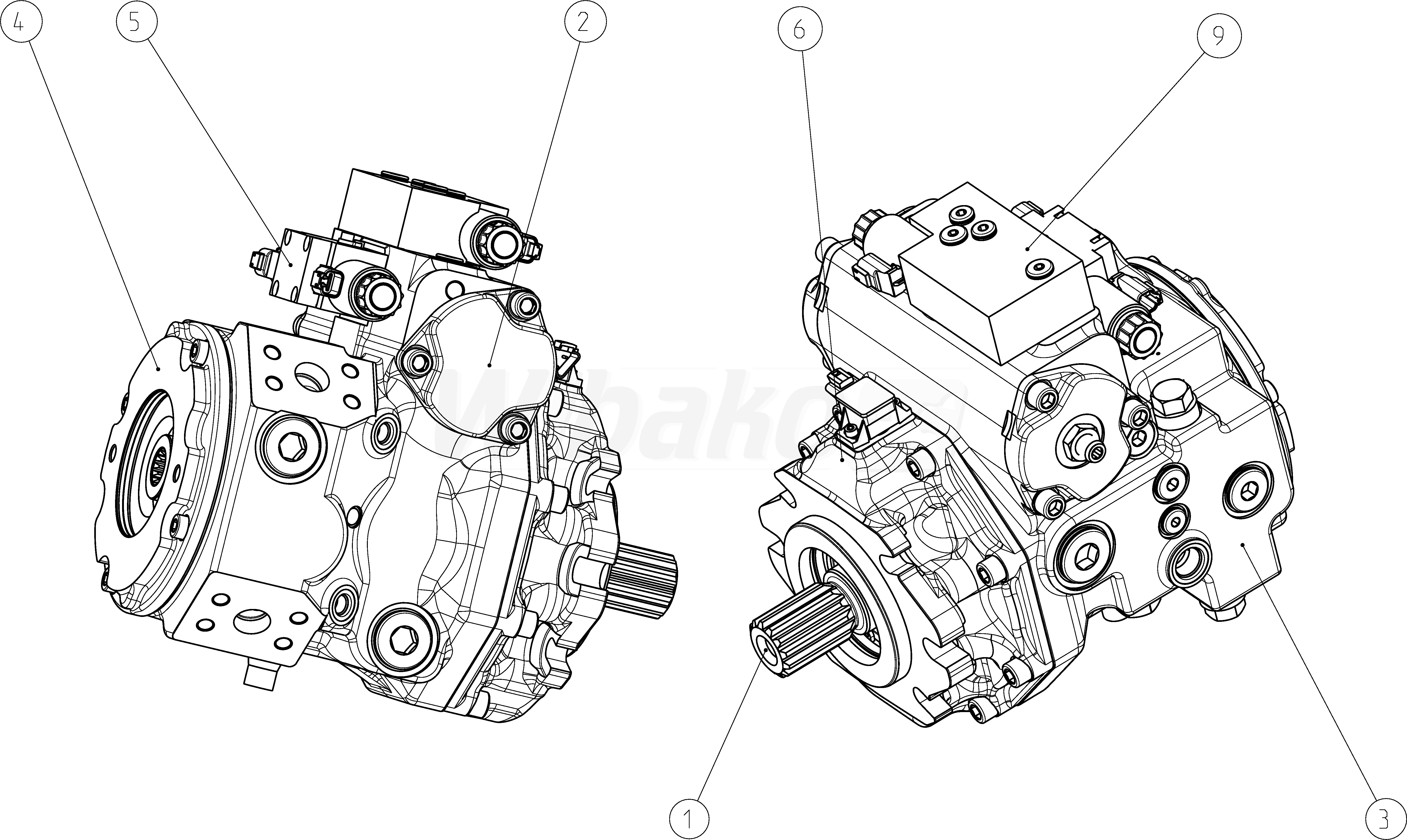

The above diagrams belong to Rexroth www.boschrexroth.com
