A4VG145EP1/40MR+A10VG63EP/10+A10VNO/45 (R902239626)
Set of 3 pumps:
1. Axial piston variable pump A4VG, swashplate design, nominal pressure 450 bar, maximum pressure 500 bar. Pump, closed circuit. Geometric displacement 145 cm3. Proportional control, electric U = 12 V. Series 40. Metric ports according to ISO 6149 with O-ring seal, metric fastening thread according to DIN 13. Direction of rotation: clockwise (viewed on drive shaft).
2.
3.
1. Axial piston variable pump A4VG, swashplate design, nominal pressure 450 bar, maximum pressure 500 bar. Pump, closed circuit. Geometric displacement 145 cm3. Proportional control, electric U = 12 V. Series 40. Metric ports according to ISO 6149 with O-ring seal, metric fastening thread according to DIN 13. Direction of rotation: clockwise (viewed on drive shaft).
2.
3.

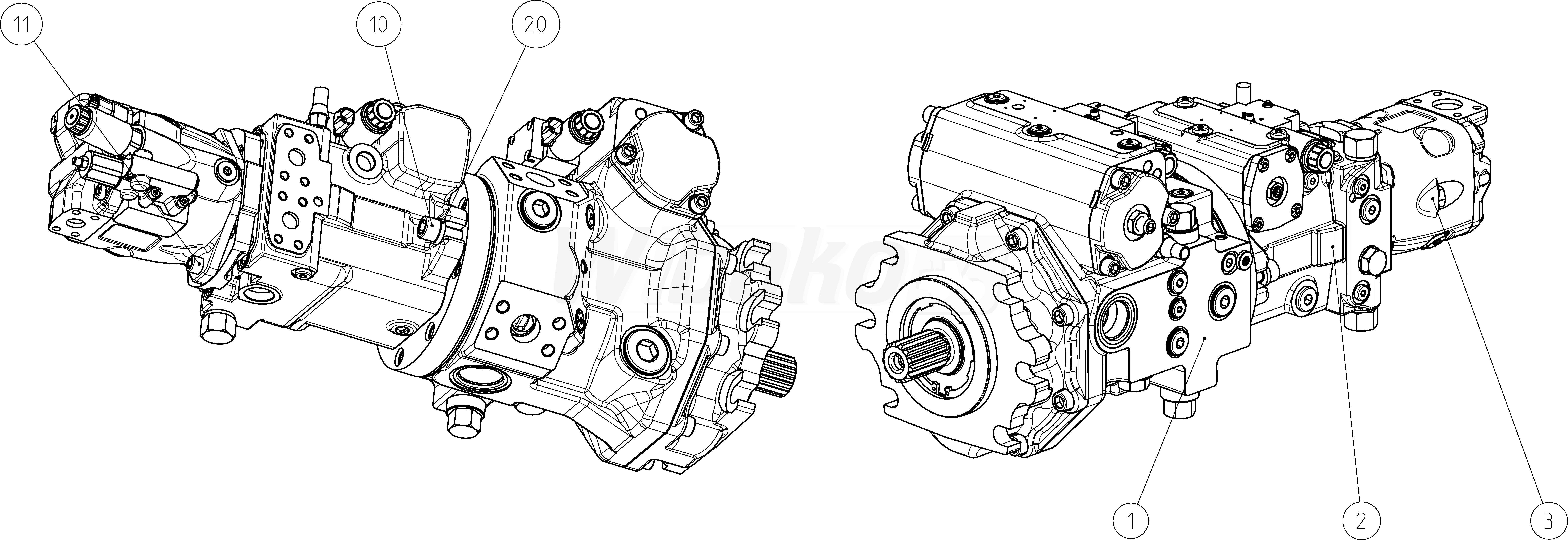

The above diagrams belong to Rexroth www.boschrexroth.com
