A4VG145EP1XCRM0/40MLND6T11VB1S5XF00-S (R902239696)
Axial piston variable pump A4VG, swashplate design, nominal pressure 450 bar, maximum pressure 500 bar. Pump, closed circuit. Geometric displacement 145 cm3. Proportional control, electric U = 12 V. Series 40. Metric ports according to ISO 6149 with O-ring seal, metric fastening thread according to DIN 13. Direction of rotation: counter-clockwise (viewed on drive shaft). Sealing material: NBR (nitrile rubber), shaft seal in FKM (fluoroelastomer). Mounting flange SAE J744 152-2/4. Splined shaft ANSI B92.1a–1976 1 3/4 in 13T 8/16DP. SAE working port A and B, on left side (45° left). High-speed rotary group, boost pump integrated, standard internal gear pump. Flange SAE J744: diameter- 101-2 (B), mounting- vertical, code- B1. Hub for splined shaft: diameter- 7/8 in 13T 16/32DP, code- S5. Special version.

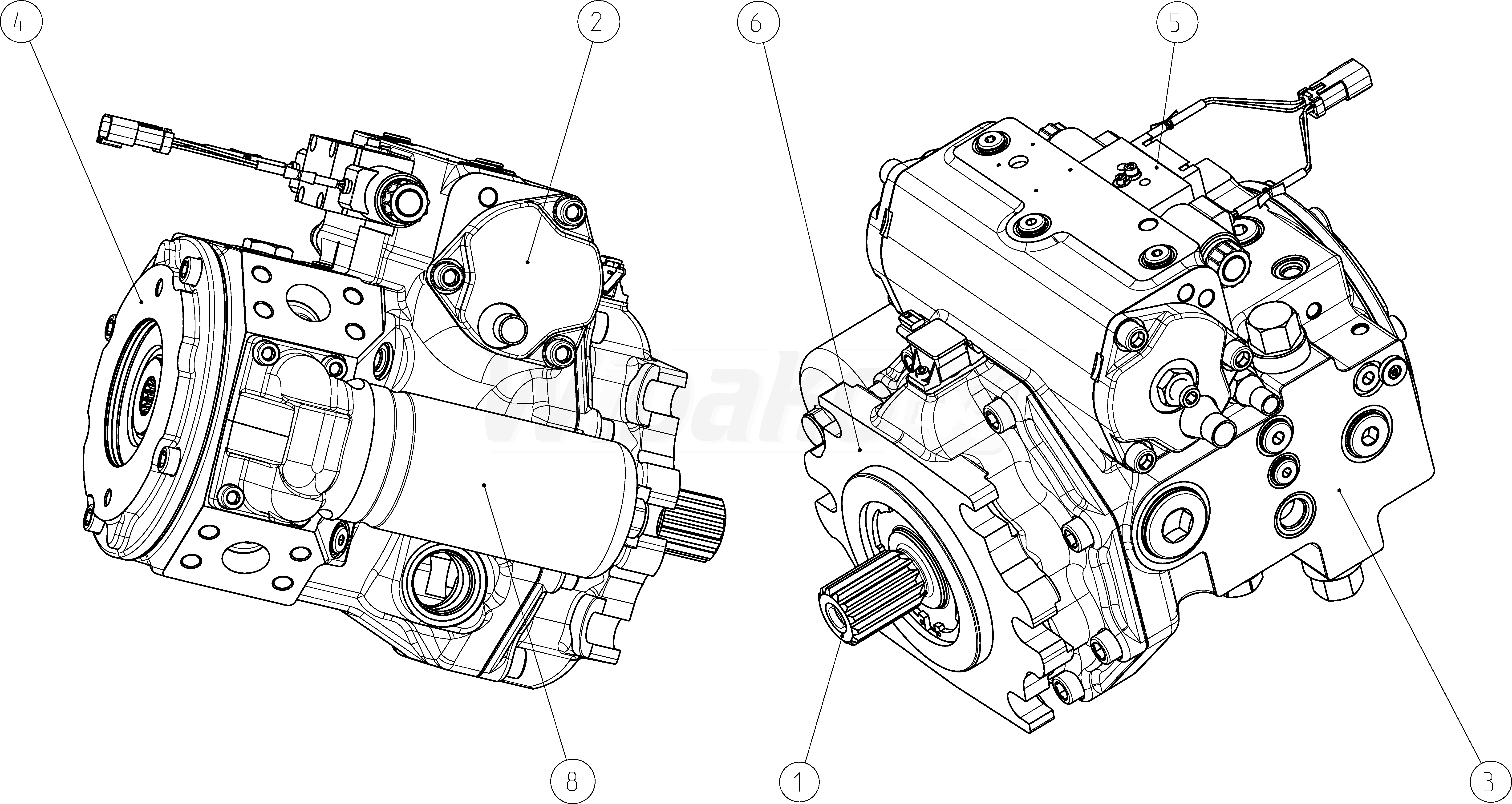

The above diagrams belong to Rexroth www.boschrexroth.com
