A4VG085EV2DP000/40MRND6V82FC4S7AF00-S (R902243479)

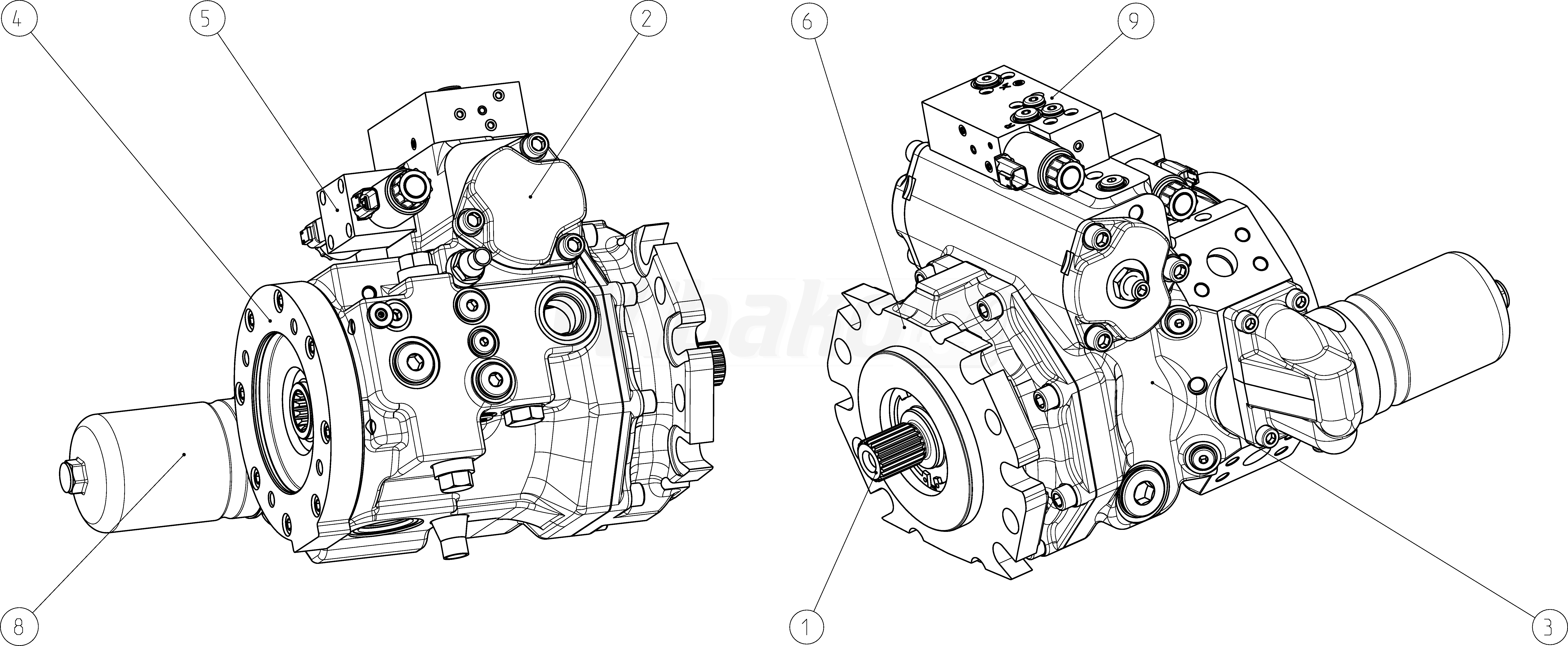

Axial piston variable pump A4VG, swashplate design, nominal pressure 450 bar, maximum pressure 500 bar. Pump, closed circuit. Geometric displacement 085 cm³. Series 40. Metric ports according to ISO 6149 with O-ring seal, metric fastening thread according to DIN 13. Direction of rotation: clockwise (viewed on drive shaft). Sealing material: NBR (nitrile rubber), shaft seal in FKM (fluoroelastomer). Mounting flange SAE J744 152-2/4. Splined shaft ANSI B92.1a–1976 1 3/8 in 21T 16/32DP. SAE working port A and B, on right side (45° right). Standard rotary group, boost pump integrated, standard internal gear pump. Flange SAE J744: diameter- 127-4 (C), mounting- squarely, code- C4. Hub for splined shaft: diameter- 1 1/4 in 14T 12/24DP, code- S7. High-pressure relief valve, direct operated, fixed setting, with low-pressure relief valve, fixed setting. Filtration in the boost pump pressure line. Attachment filter with cold start valve. Special version.
