G A10V O 85 OV /52L-VQQ12N00 -S1772 (R902431431)

Axial piston variable pump A10VO, swashplate design, open circuit, nominal pressure 250 bar, maximum pressure 315 bar. Series 52. Geometric displacement 85 cm3. Directions of rotation: counter-clockwise (viewed on drive shaft). Seal: FKM (fluoroelastomer).

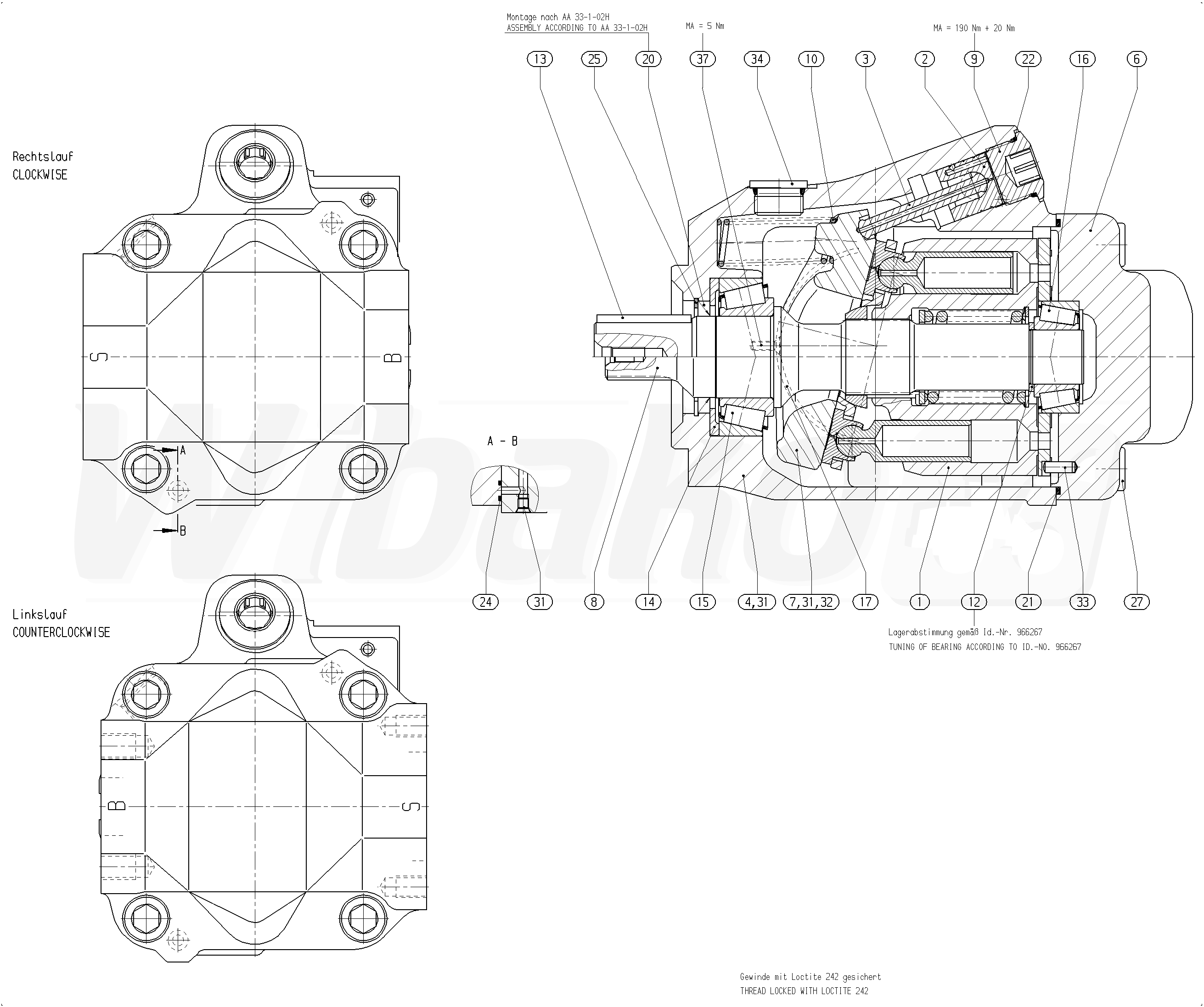

1

ROTARY GROUP
(18051)

Group »


2

ADJUSTING PISTON
(119054)


3

PISTON ROD
(18053)


4

PUMP HOUSING
(119055)


6

CONNECTION PLATE
(26376)


7

SWASH PLATE
(18056)


8

DRIVE SHAFT
(119005)


9

SCREW PLUG
(19813)


10

COMPRESSION SPRING
(18059)


12

ADJUSTMENT SHIM
(15478)


14

STOP RING
(18060)


15

TAPERED-ROLLER BEARING
(15479)


16

TAPERED-ROLLER BEARING
(15480)


17

BEARING SHELL
(18061)


20

SHAFT SEALING RING
(15482)


21

O-RING
(26377)


24

R-RING
(11889)


25

RETAINING RING
(11384)


27

SOCKET HEAD CAP SCREW
(15484)


31

DOUBLE BREAK-OFF PLUG
(18990)


32

NOZZLE
(13923)


33

STRAIGHT PIN
(11892)


34

SCREW PLUG
(18063)


37

COUNTERSUNK-HEAD SCREW
(13305)
