A4VG110EP1BP000/40MRNC6V81W0000CE00-S (R902245821)
Axial piston variable pump A4VG, swashplate design, nominal pressure 450 bar, maximum pressure 500 bar. Pump, closed circuit. Geometric displacement 110 cm3. Proportional control, electric U = 12 V. Mechanical stroke limiter and stroking chamber pressure port X3 X4. Series 40. Metric ports according to ISO 6149 with O-ring seal, metric fastening thread according to DIN 13. Direction of rotation: clockwise (viewed on drive shaft). Sealing material: NBR (nitrile rubber), shaft seal in FKM (fluoroelastomer). Mounting flange SAE J744 127-2/4. Splined shaft ANSI B92.1a–1976 1 3/8 in 21T 16/32DP. SAE working port A and B, on left side (45° left). High-speed rotary group, without boost pump. Without through drive. Special version.

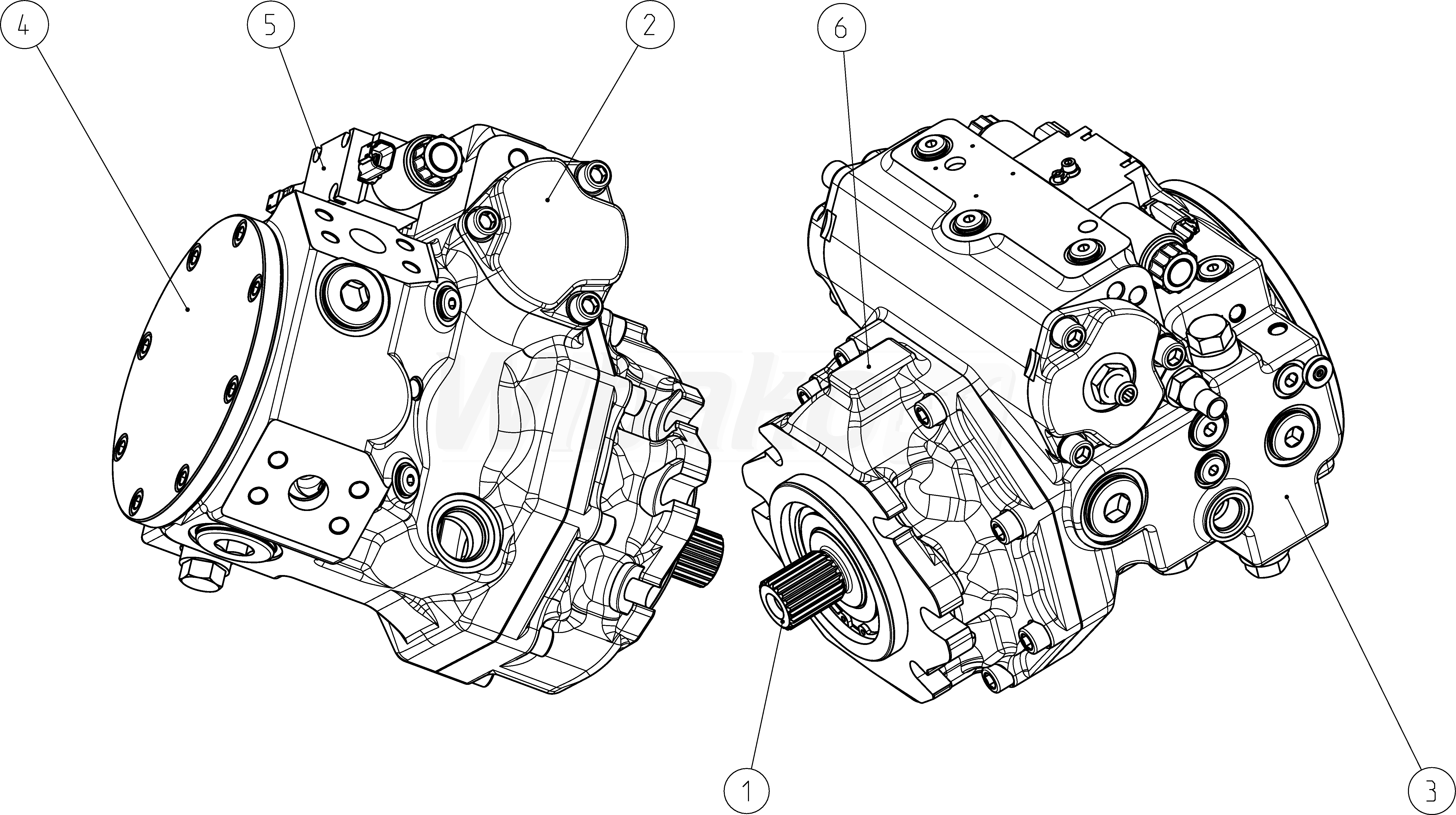

The above diagrams belong to Rexroth www.boschrexroth.com
