A4VG085ET5DP000/40ALNC6Z81F0000AX00-S (R902245990)
Axial piston variable pump A4VG, swashplate design, nominal pressure 450 bar, maximum pressure 500 bar. Pump, closed circuit. Geometric displacement 085 cm3. Electric control, direct operated, two pressure reducing valves (DRE) U = 12 V. Pressure cut-off, with bypass. Fixed setting, hydraulic, mechanical. DEUTSCH molded connector, 2-pin – without suppressor diode. Without swivel angle sensor. Without additional function. Without DA control valve. Series 40. High-pressure relief valve, direct operated, fixed setting, with low-pressure relief valve, fixed setting. Special version.

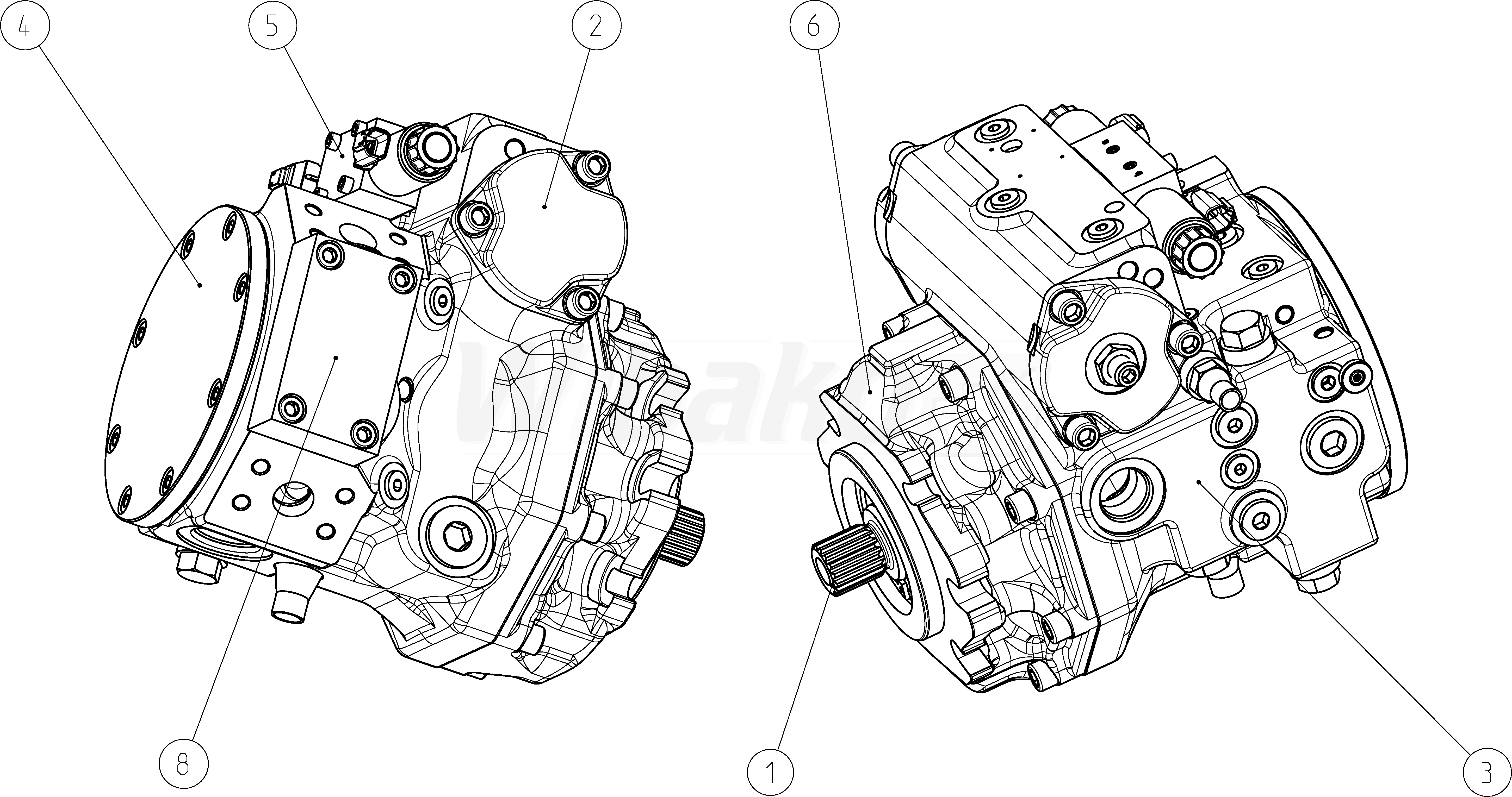

The above diagrams belong to Rexroth www.boschrexroth.com
