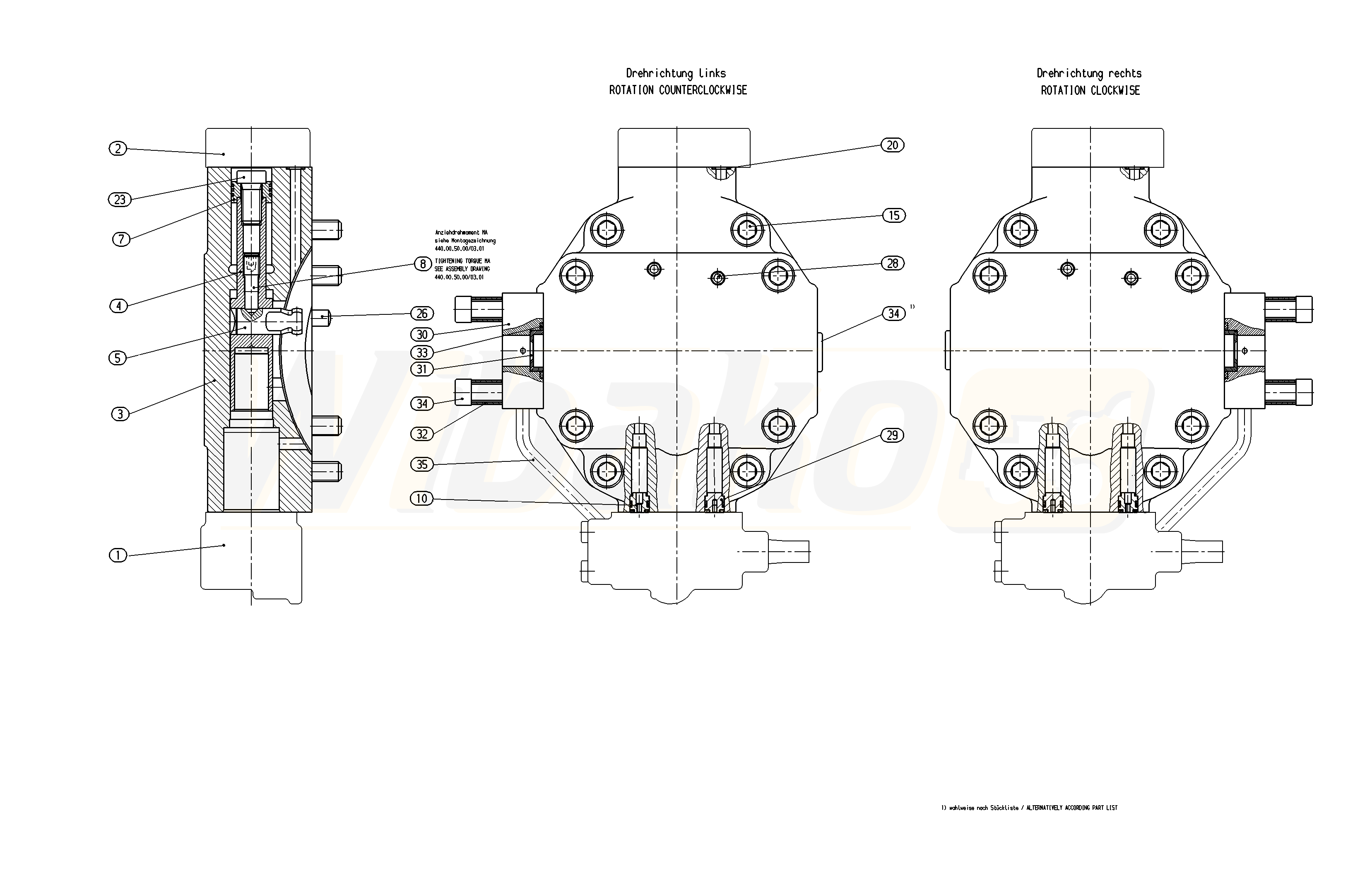

A6VE55FR/63W-VZL020B-S (R902121858)
CONTROL (171589)

CONTROL
(171589)


1

CONTROL PART
(171590)

Group »


2

COVER
(19375)

Group »


3

COVER PLATE
(19379)


4

POSITIONING PISTON
(17524)


5

POSITIONING STUD
(17525)


7

PISTON
(17526)


8

SETSCREW
(11544)


10

PLUG
(171591)


15

SOCKET HEAD CAP SCREW
(11549)


20

O-RING
(11335)


23

SOCKET HEAD CAP SCREW
(17527)


26

STRAIGHT PIN
(14017)


28

DOUBLE BREAK-OFF PLUG
(18990)


29

PLUG
(11658)


30

ORIFICE FLANGE
(171592)


31

ORIFICE
(171593)


32

DISTANCE PIPE
(171594)


33

O-RING
(17536)


34

SOCKET HEAD CAP SCREW
(11549)


35

HYDRAULIC LINE
(171595)

Group »



Return

The above diagrams belong to Rexroth www.boschrexroth.com
