AA4VG56DWDT1/32R-NZCXXF003D-S (R902007579)

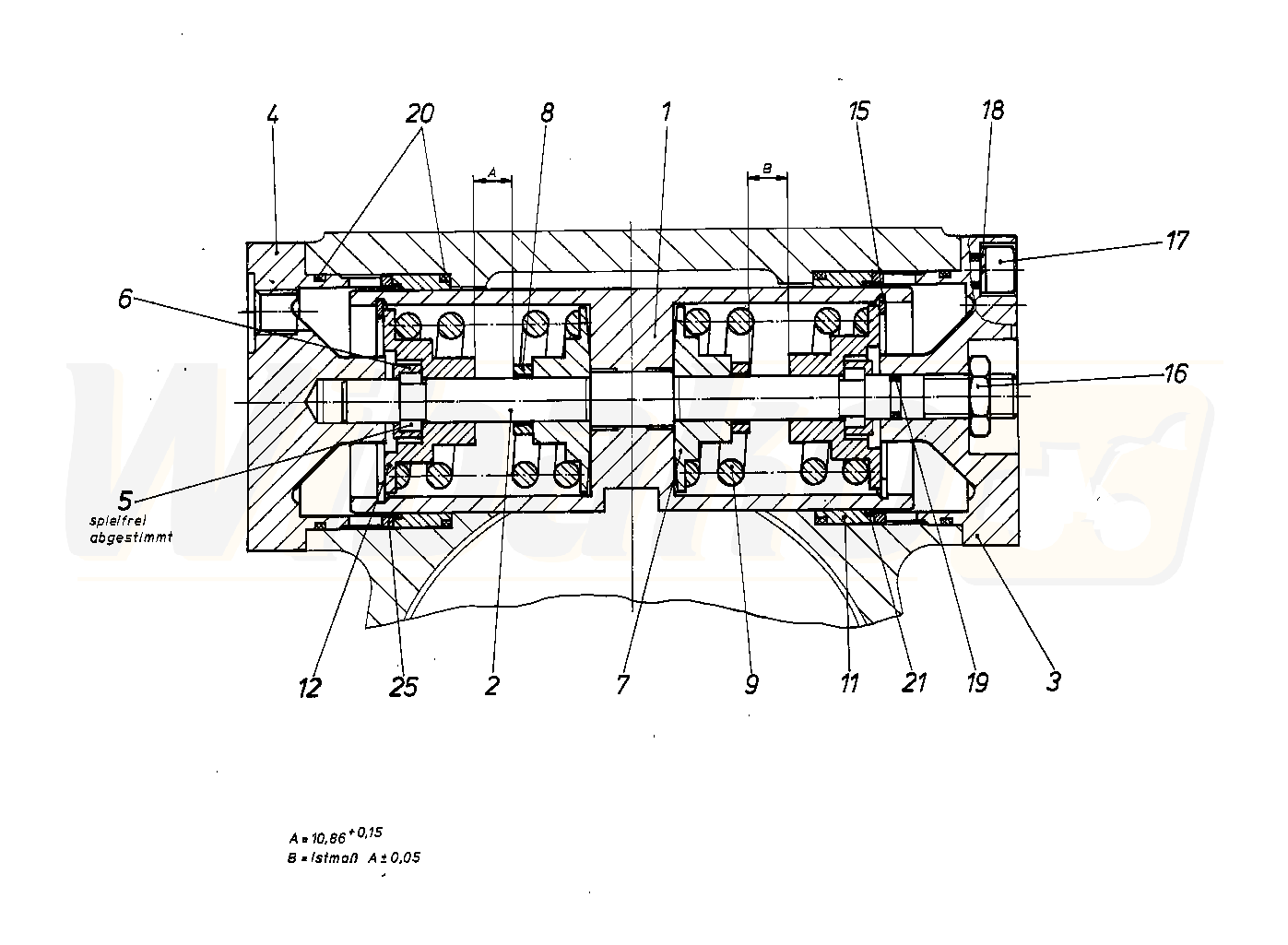

CONTROL (21533)

CONTROL
(21533)


1

POSITIONING PISTON
(21299)

Group »


3

COVER


4

COVER


11

BUSHING
(21308)


16

HEXAGON NUT
(10645)


17

SOCKET HEAD CAP SCREW
(10848)


20

O-RING
(10849)


21

ROD SEAL


25

BACKUP RING
(21309)


98

SEAL KIT
(10850)



Return

The above diagrams belong to Rexroth www.boschrexroth.com
